Front Floor Console Extension Panel Replacement - Left Side
NOTE:

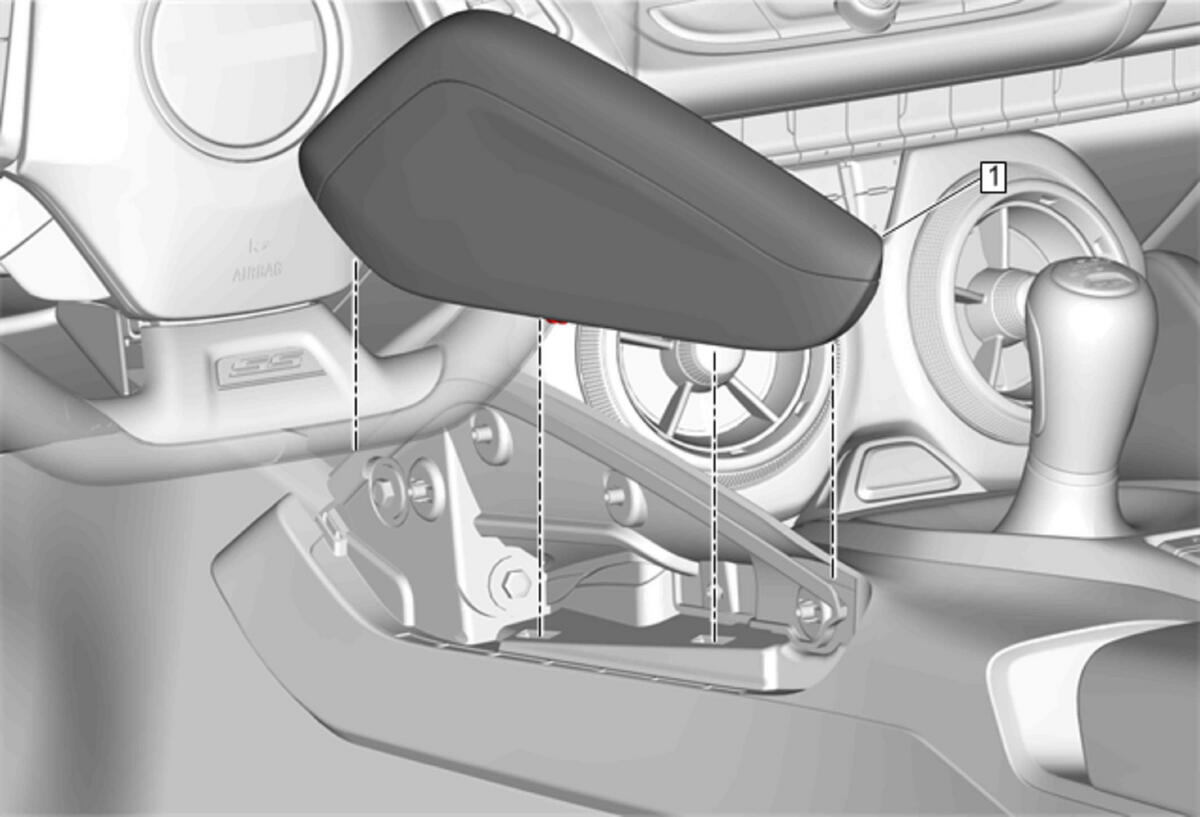

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Extension Panel - Left Side
NOTE:
When installing the panel the 2 clips need to be inserted into the slots and then the upper integral tabs goes over the front floor console bracket. Procedure Use a flat bladed plastic trim tool. |
