Front Floor Console Armrest Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

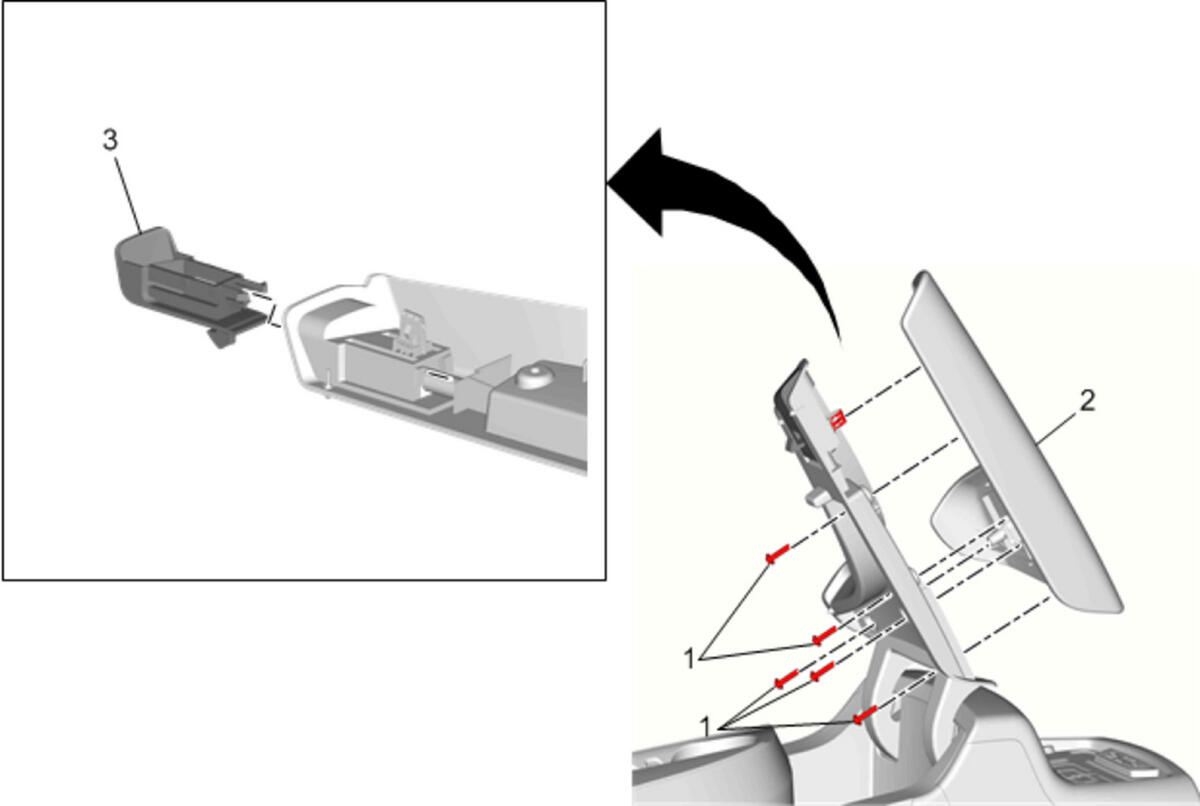

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Floor Console Armrest Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Front Floor Console Outer Armrest Procedure  Release the retainer.
3	Front Floor Console Armrest Latch Procedure  Release the plastic retaining tabs.
