Upfitter Provision Harness Routing - Engine Compartment (9L7)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

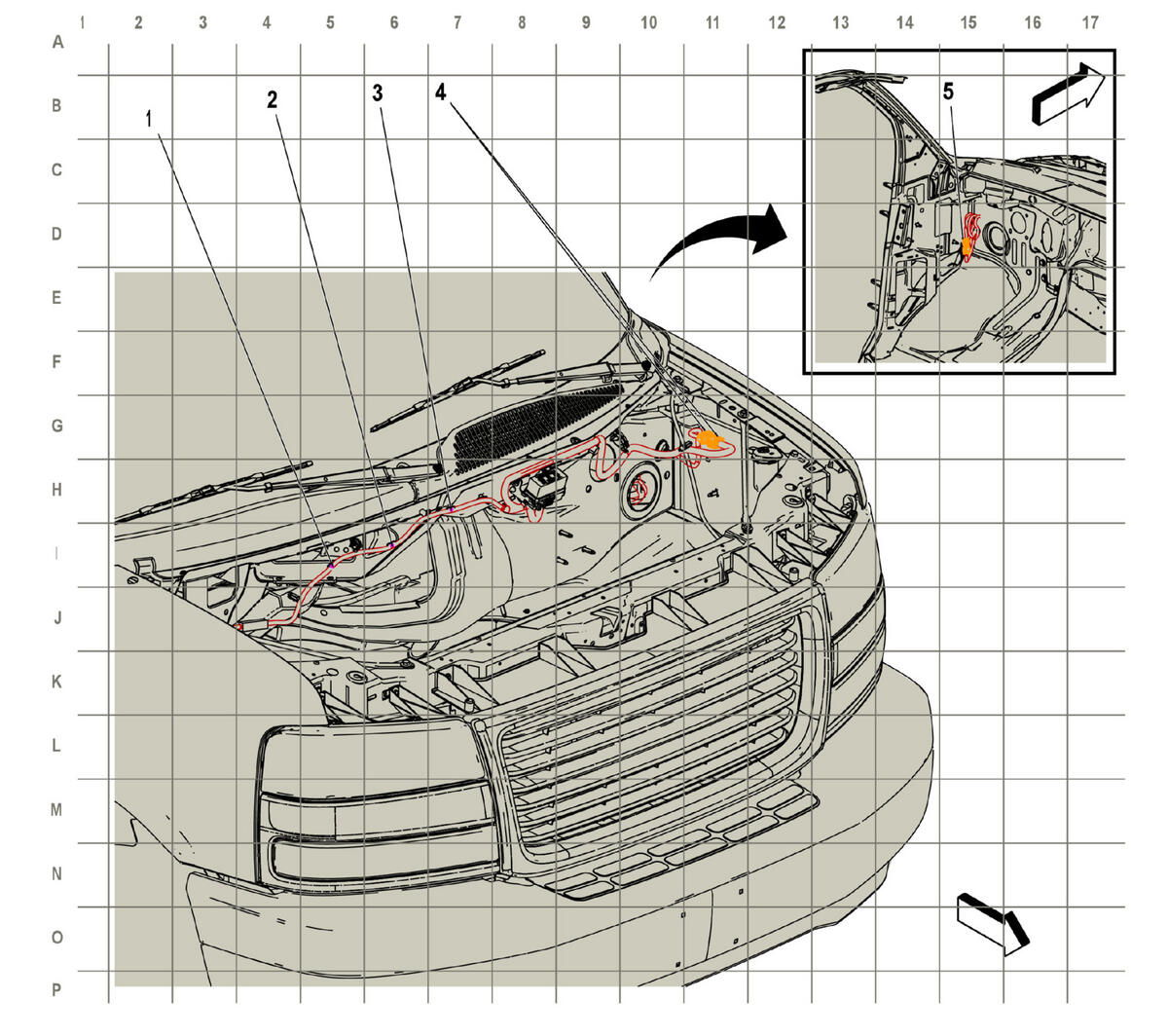

GM6003060Courtesy of GENERAL MOTORS COMPANY
Items
1. J104 Fuse Block Jumper Wiring Harness (9L7)
2. J105 Fuse Block Jumper Wiring Harness (9L7)
3. J106 Fuse Block Jumper Wiring Harness (9L7)
4. X190 Accessory Wiring Harness to Accessory Power Fuse Block Rear Wiring Harness Extension Harness X190 Accessory Wiring Harness to Accessory Power Fuse Block Rear Wiring Harness Extension Harness
5. X291 Accessory Power Fuse Block Rear Wiring Harness Extension Harness to Accessory Power Fuse Block Rear Wiring Harness Extension Harness X291 Accessory Power Fuse Block Rear Wiring Harness Extension Harness to Accessory Power Fuse Block Rear Wiring Harness Extension Harness
