Roof Harness Routing - Rear

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

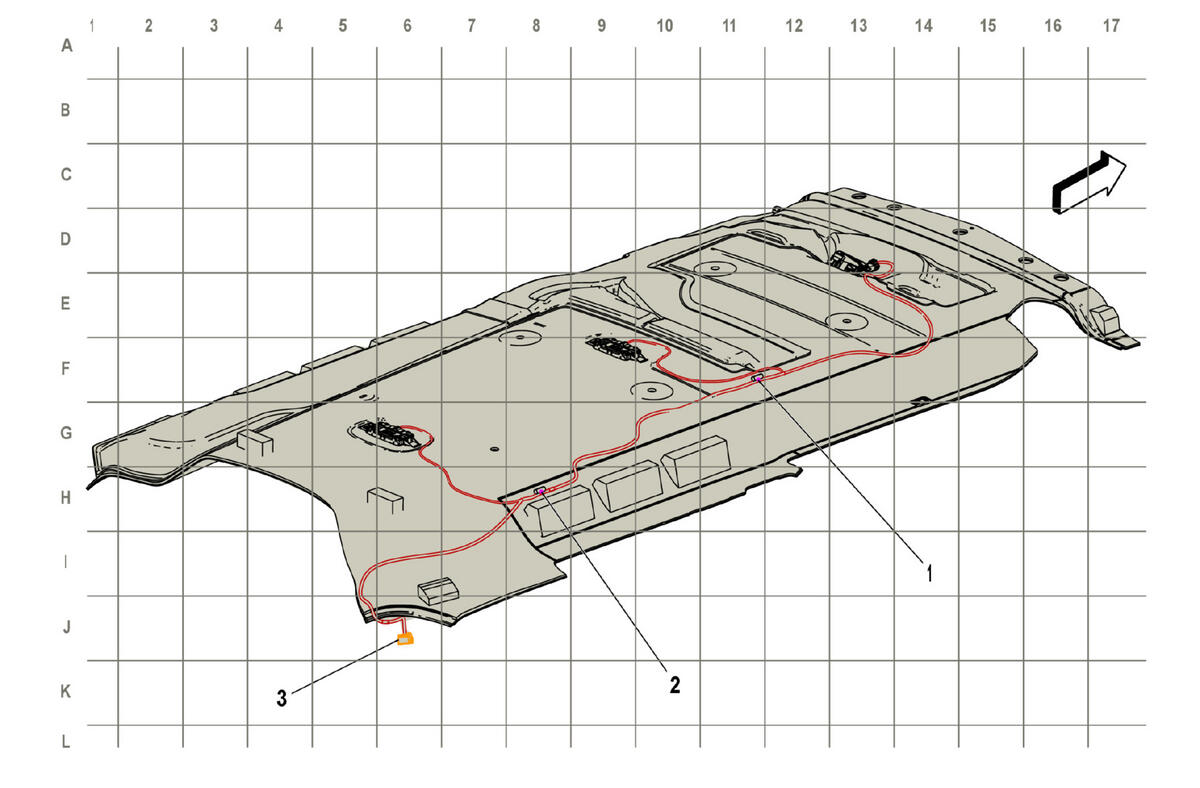

GM6003052Courtesy of GENERAL MOTORS COMPANY
Items
1. J330 Rear Headliner Wiring Harness (Passenger)
2. J407 Rear Headliner Wiring Harness (Passenger)
3. X421 Roof Console Wiring Harness to Body Wiring Harness X421 Roof Console Wiring Harness to Body Wiring Harness
