Roof Harness Routing - Front

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

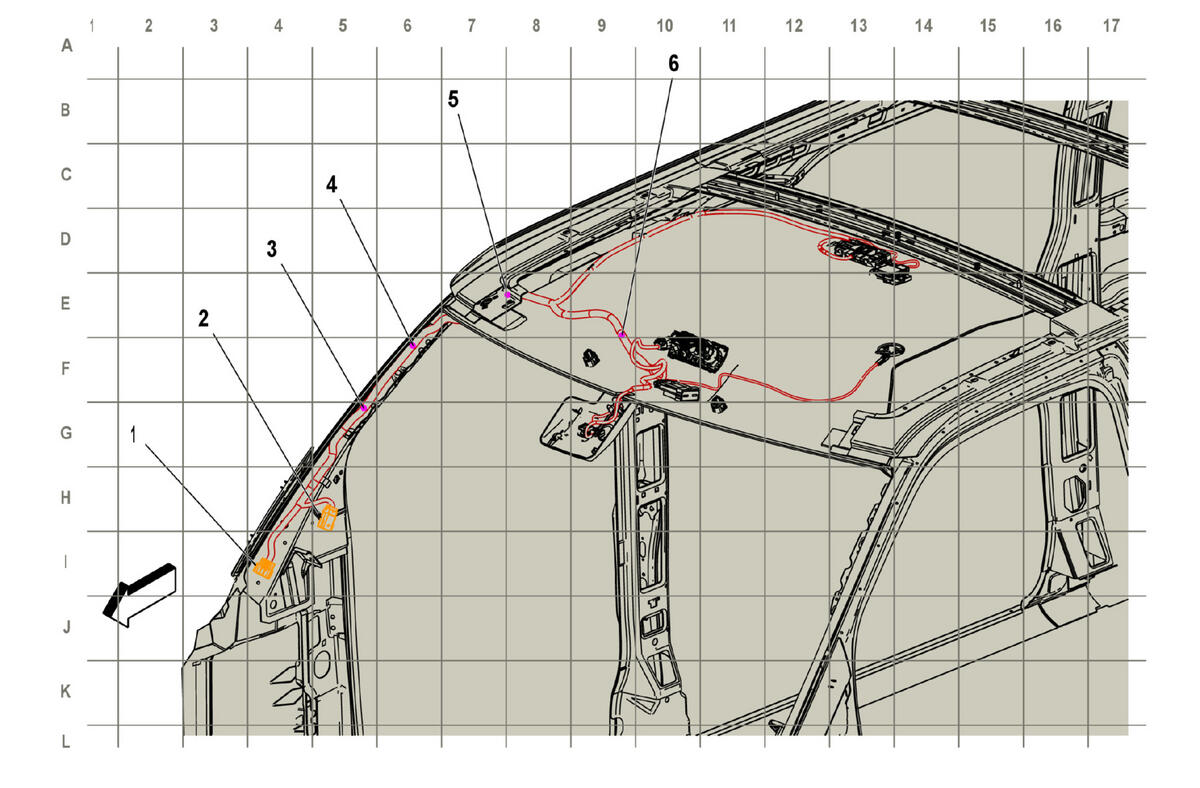

GM6003051Courtesy of GENERAL MOTORS COMPANY
Items
1. X205 Roof Console Wiring Harness to Body Wiring Harness X205 Roof Console Wiring Harness to Body Wiring Harness
2. X204 Body Wiring Harness to Roof Console Wiring Harness X204 Body Wiring Harness to Roof Console Wiring Harness
3. J314 Front Headliner Wiring Harness
4. J333 Front Headliner Wiring Harness (DH6 without YF7)
5. J335 Front Headliner Wiring Harness (U80)
6. J307 Front Headliner Wiring Harness (C69 with YF7)
