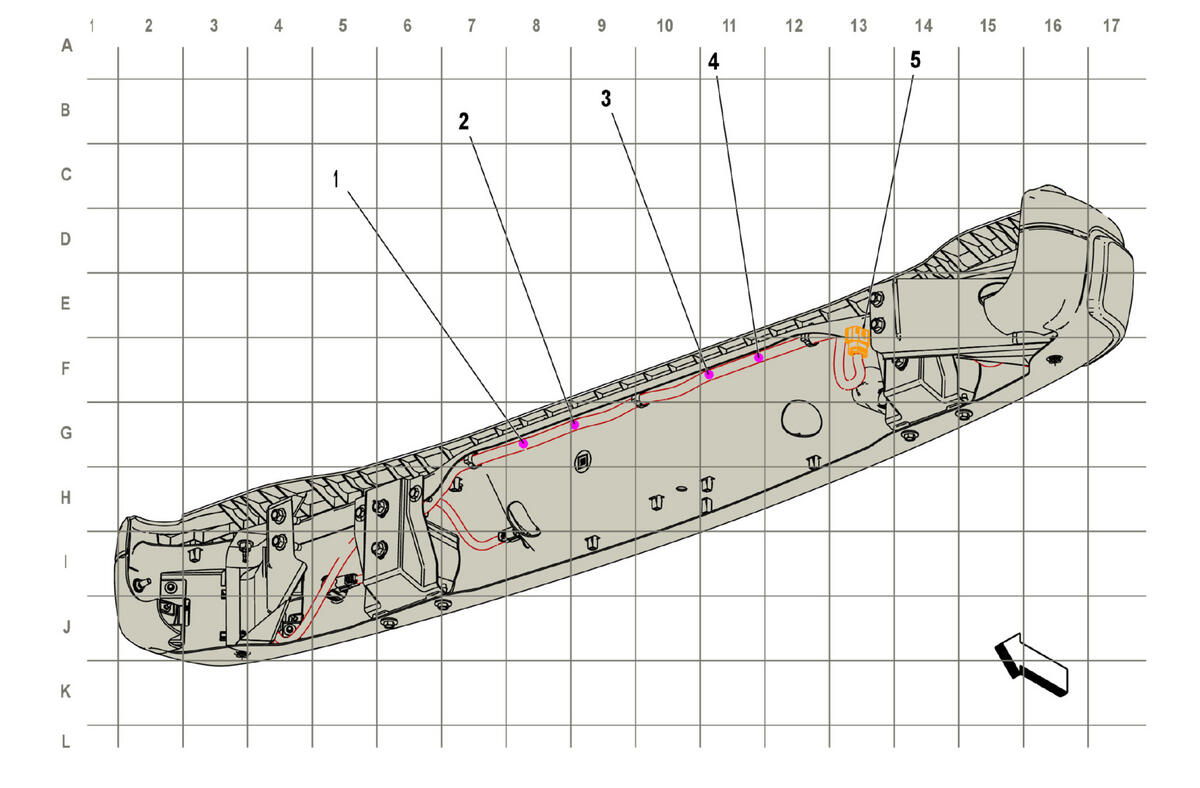

Rear Bumper Harness Routing
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J425 Parking Aid Jumper Wiring Harness (UFT) |
| 2. J426 Parking Aid Jumper Wiring Harness (UFT) |
| 3. J420 Rear Bumper Wiring Harness (UD7) |
| 4. J421 Rear Bumper Wiring Harness (UD7) |
| 5. X408 Rear Object Alarm Sensor Wiring Harness to Chassis Wiring Harness (UD7/UFT) X408 Rear Object Alarm Sensor Wiring Harness to Chassis Wiring Harness |
