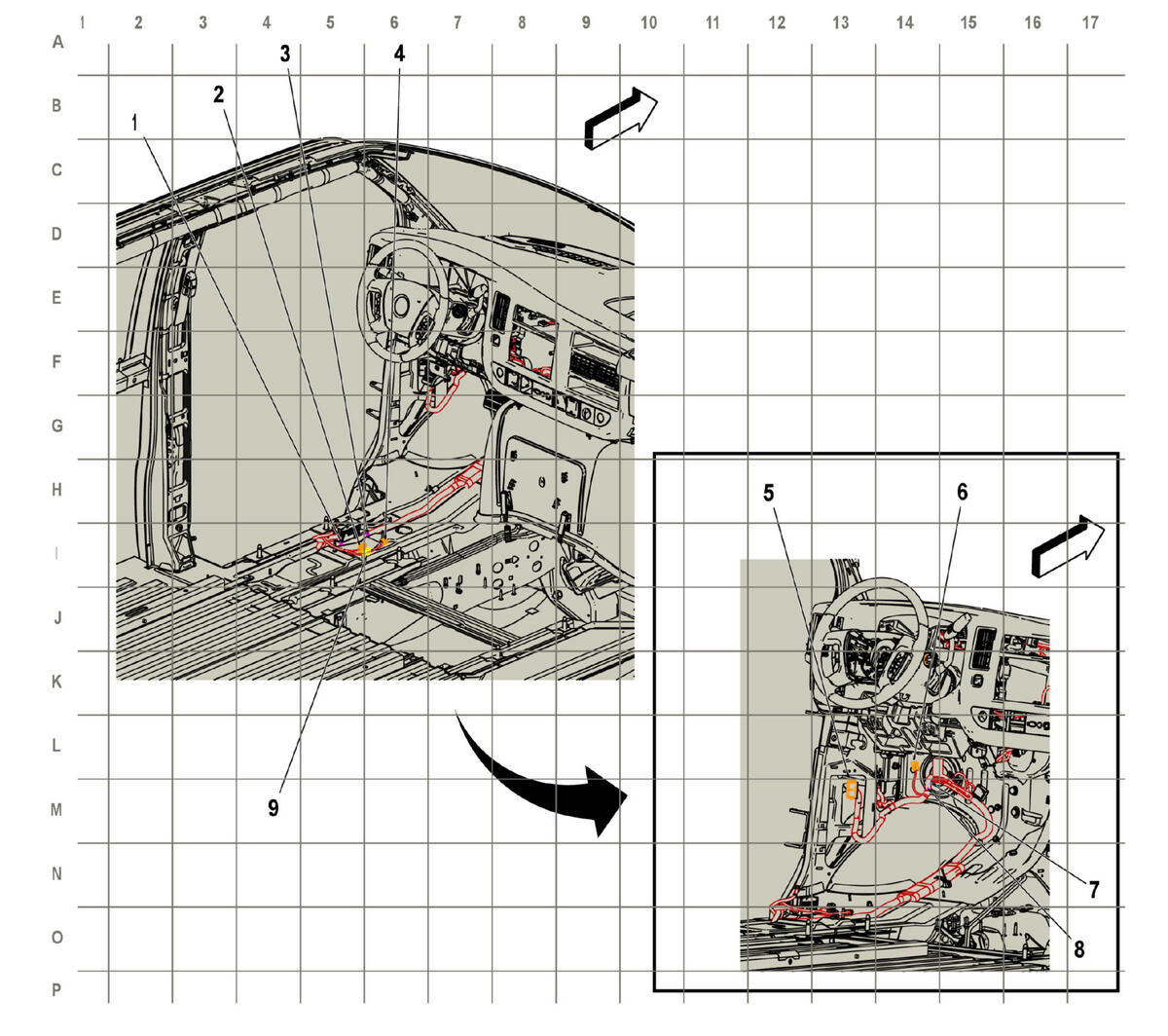

Instrument Panel Harness Routing - Driver Side
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J223 Instrument Panel (UVC) |
| 2. X331 Instrument Panel Wiring Harness to Body Wiring Harness X331 Instrument Panel Wiring Harness to Body Wiring Harness |
| 3. J280 Instrument Panel (Cutaway without YF7) |
| 4. X329 Instrument Panel Wiring Harness to Body Wiring Harness (UVC) X329 Instrument Panel Wiring Harness to Body Wiring Harness |
| 5. X318 Instrument Panel Wiring Harness to Body Wiring Harness X318 Instrument Panel Wiring Harness to Body Wiring Harness |
| 6. X220 Instrument Panel Wiring Harness to Park Brake Switch Jumper Wiring Harness X220 Instrument Panel Wiring Harness to Park Brake Switch Jumper Wiring Harness |
| 7. W8 Blunt Cut - Trailer Provision (UY7) |
| 8. J201 Instrument Panel (UFL) |
| 9. X330 Instrument Panel Wiring Harness to Body Wiring Harness X330 Instrument Panel Wiring Harness to Body Wiring Harness |
