Forward Lamp Harness Routing

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

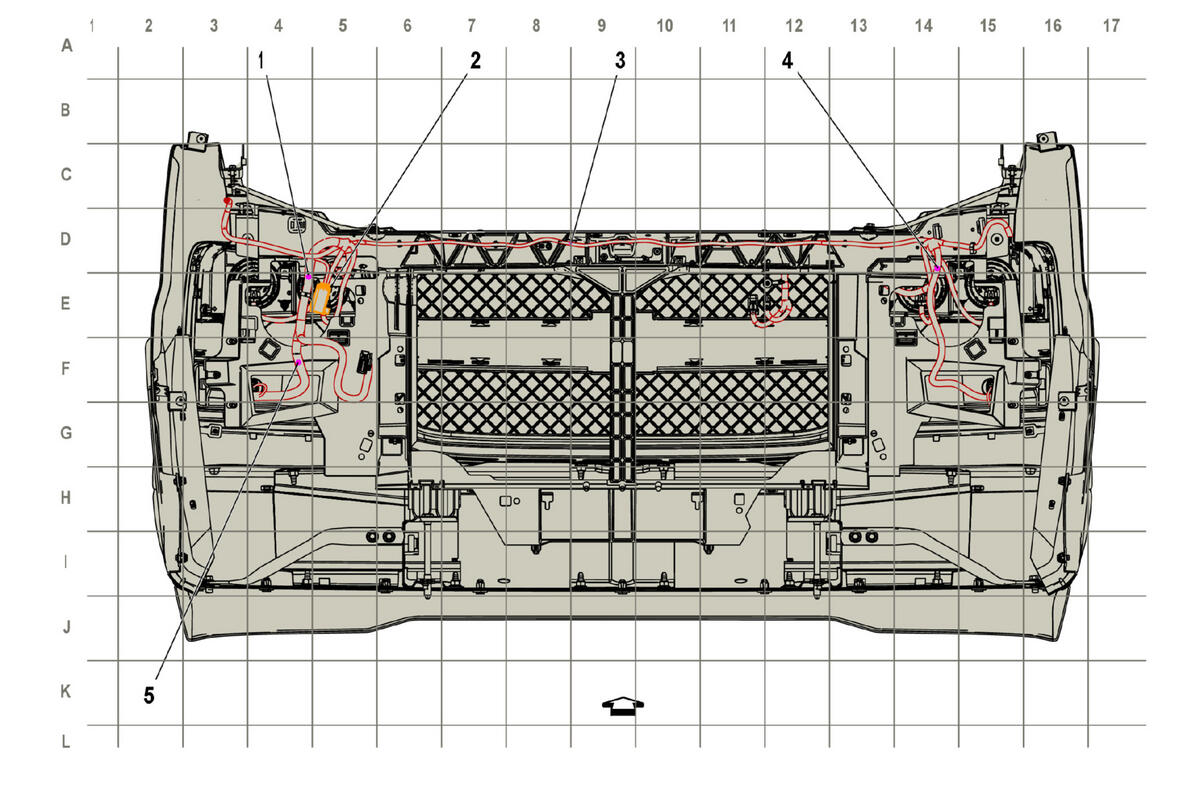

GM6040694Courtesy of GENERAL MOTORS COMPANY
Items
1. J100 Forward Lamp Wiring Harness
2. X150 Instrument Panel Wiring Harness to Forward Lamp Wiring Harness X150 Instrument Panel Wiring Harness to Forward Lamp Wiring Harness
3. J122 Forward Lamp Wiring Harness
4. J110 Forward Lamp Wiring Harness
5. J121 Forward Lamp Wiring Harness
