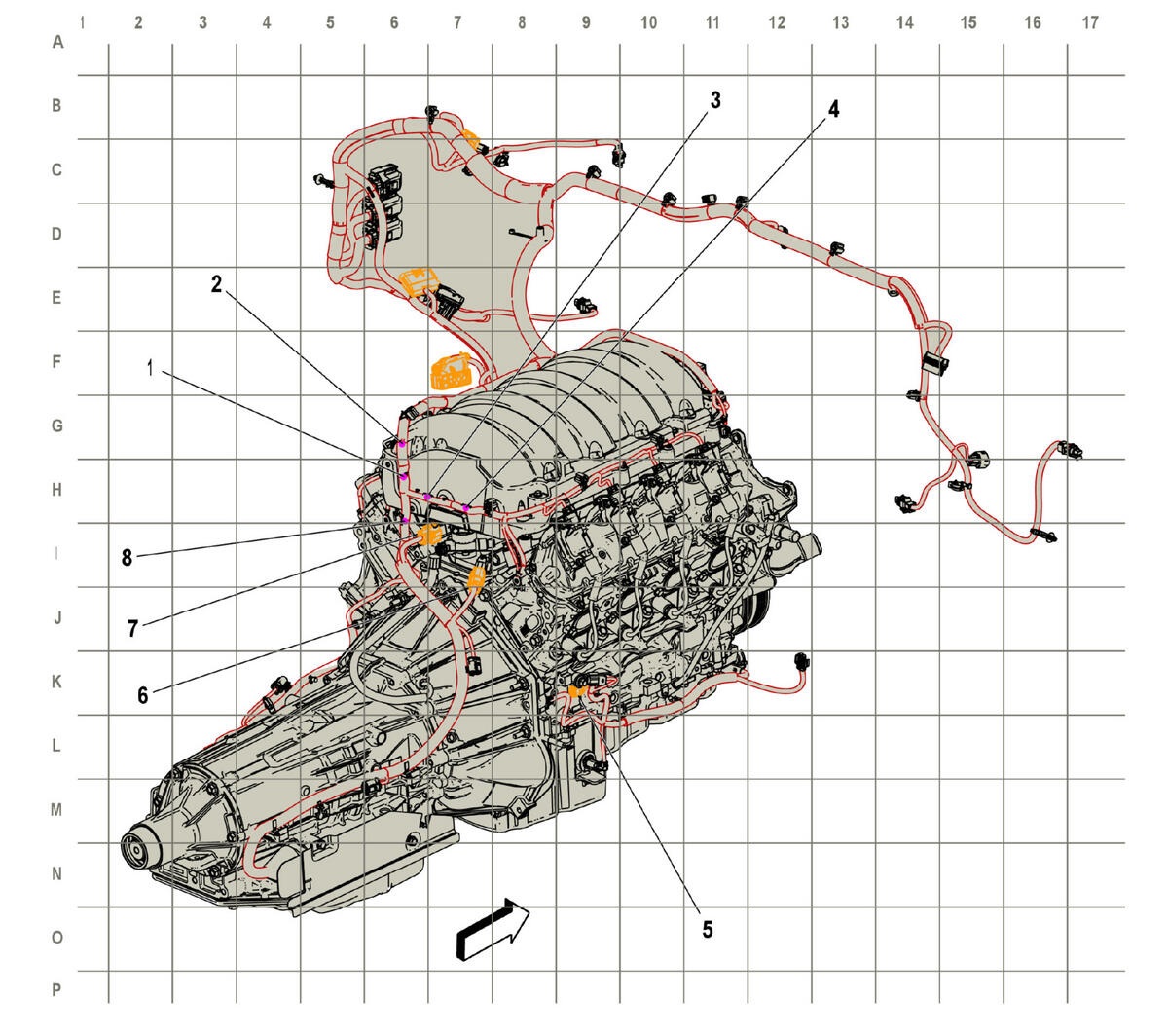

Engine Harness Routing - Rear (L8T)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J143 Engine Wiring Harness |
| 2. J188 Right Ignition Coil Wiring Harness |
| 3. J183 Right Ignition Coil Wiring Harness (L8T) |
| 4. J108 Engine Wiring Harness (L8T) |
| 5. X103 Engine Wiring Harness to Starter Motor Jumper Wiring Harness X103 Engine Wiring Harness to Starter Motor Jumper Wiring Harness |
| 6. X161 Engine Wiring Harness to Fuel Injector Wiring Harness X161 Engine Wiring Harness to Fuel Injector Wiring Harness (L8T) |
| 7. X160 Engine Wiring Harness to Fuel Injector Wiring Harness X160 Engine Wiring Harness to Fuel Injector Wiring Harness (L8T) |
| 8. J144 Engine Wiring Harness |
