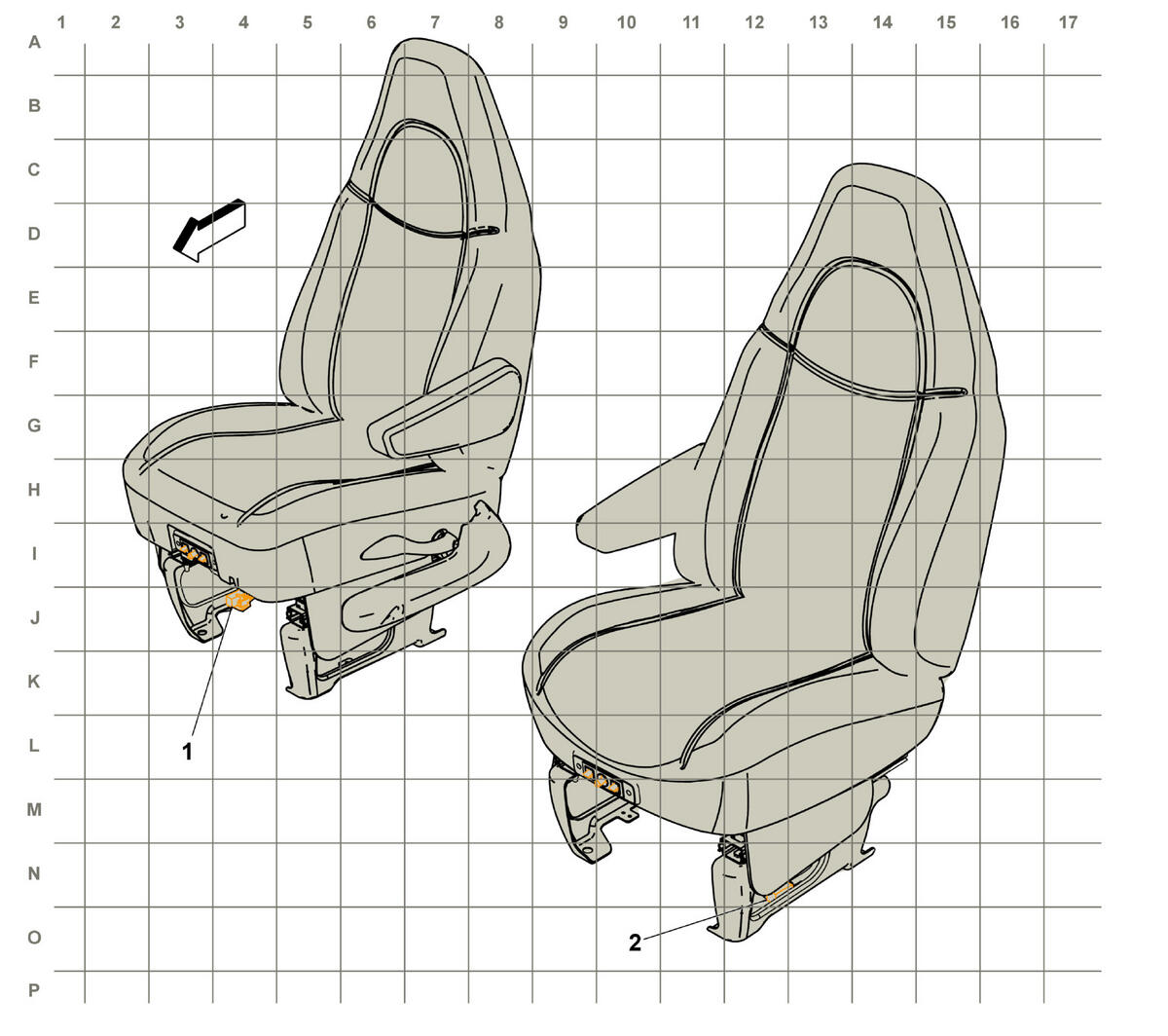

Driver Seat Harness Routing and Front Passenger Seat Harness Routing
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X306 Body Wiring Harness to Seat Wiring Harness - Passenger X306 Body Wiring Harness to Seat Wiring Harness - Passenger |
| 2. X307 Body Wiring Harness to Seat Wiring Harness - Driver X307 Body Wiring Harness to Seat Wiring Harness - Driver |
