Door Harness Routing - Passenger Rear (Passenger or Cargo)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

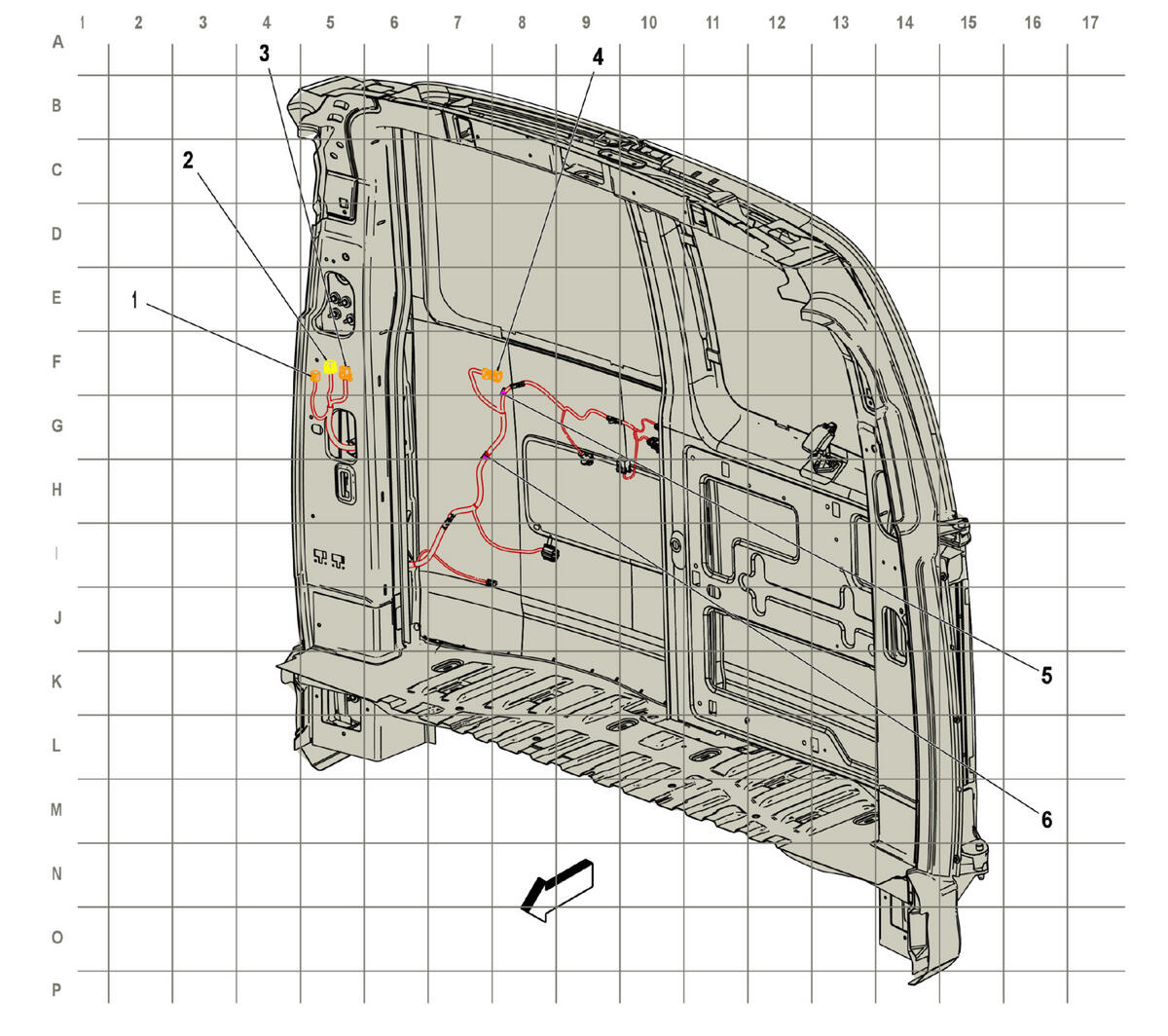

GM6003057Courtesy of GENERAL MOTORS COMPANY
Items
1. X403 Rear Door Door Wiring Harness to Body Wiring Harness (UVC) X403 Rear Door Door Wiring Harness to Body Wiring Harness (-Cutaway) , or X403 Rearview Camera Wiring Harness to Body Wiring Harness (Cutaway)
2. X400 Rear Door Door Wiring Harness to Body Wiring Harness (Passenger/Cargo) X400 Rear Door Door Wiring Harness to Body Wiring Harness
3. X412 Rear Door Door Wiring Harness to Body Wiring Harness (Passenger/Cargo) X412 Rear Door Door Wiring Harness to Body Wiring Harness
4. X902 Rear Window Defogger Wiring Harness to Rear Door Door Wiring Harness (C49) X902 Rear Window Defogger Wiring Harness to Rear Door Door Wiring Harness
5. J901 Right Rear Cargo Door Wiring Harness (Cargo/Passenger with AU3)
6. J902 Right Rear Cargo Door Wiring Harness (Cargo/Passenger with C49)
