Door Harness Routing - Passenger Door
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

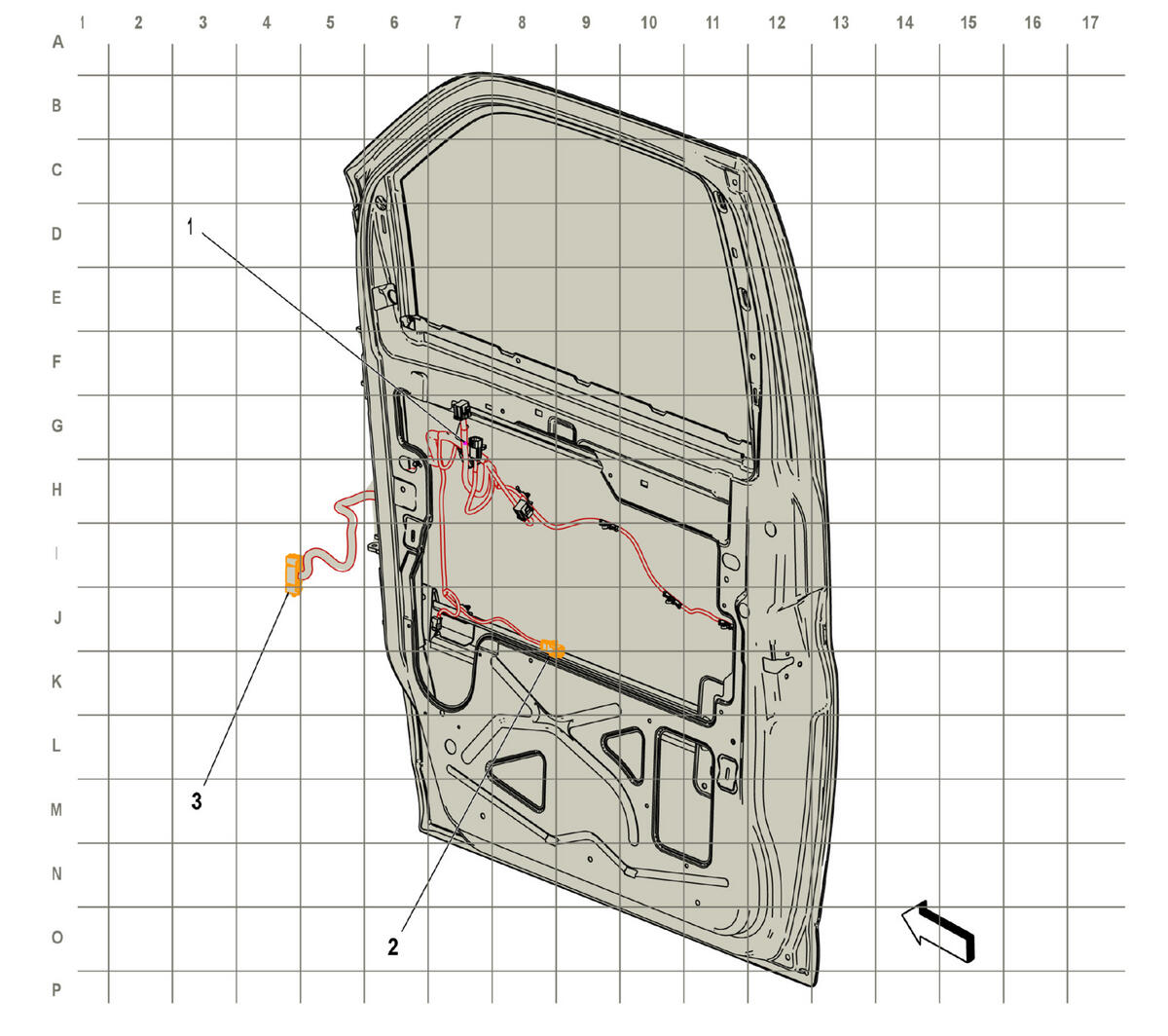

| Items |
|---|
| 1. J600 Passenger Door Wiring Harness (AU3/DE5/A31) |
| 2. X601 Side Impact Sensor - Right Front Jumper Wiring Harness to Front Side Door Door Wiring Harness - Passenger (ASF) X601 Side Impact Sensor - Right Front Jumper Wiring Harness to Front Side Door Door Wiring Harness - Passenger |
| 3. X600 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness X600 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness |
