Door Harness Routing - Driver Rear (Passenger or Cargo)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

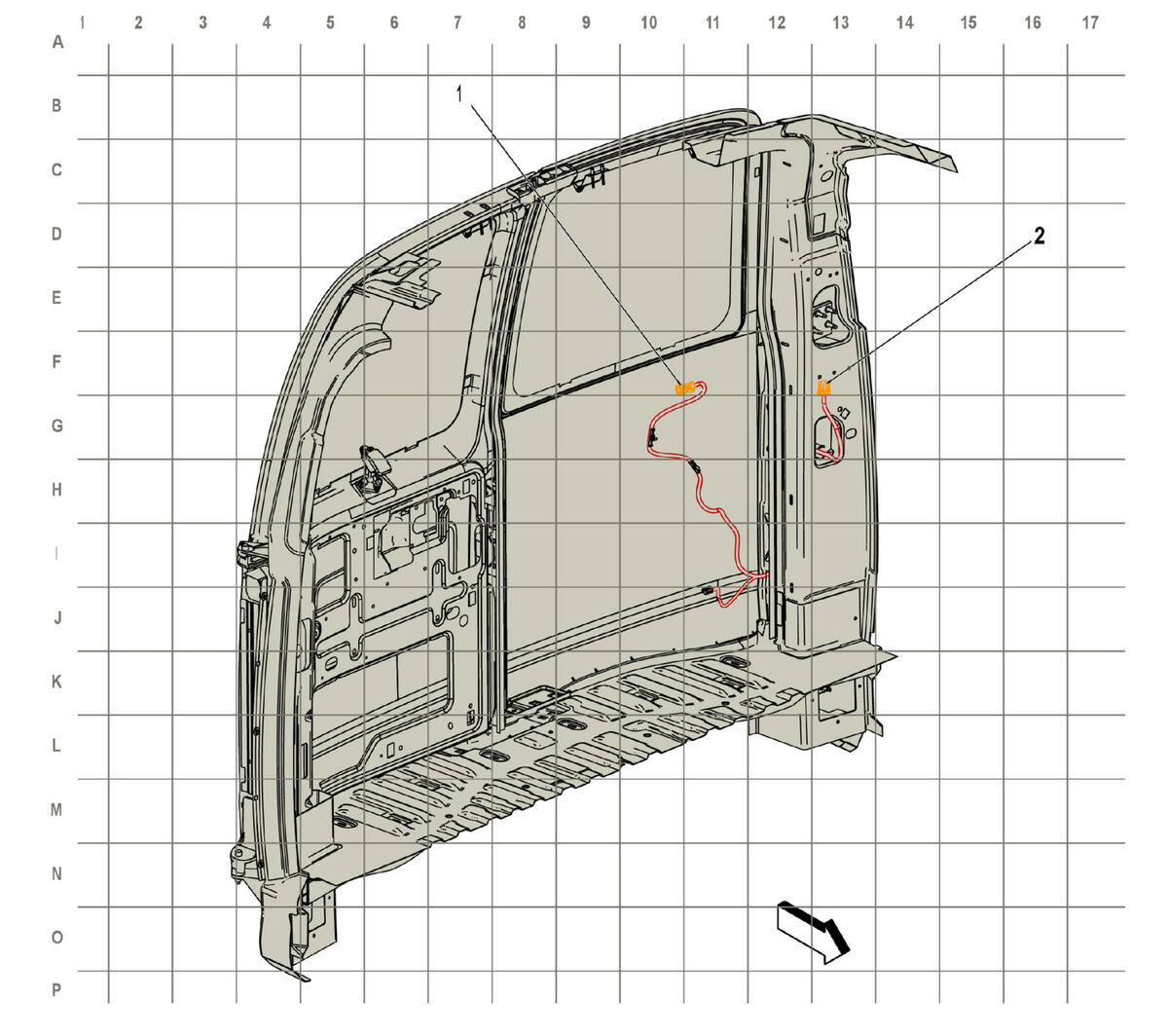

GM6003056Courtesy of GENERAL MOTORS COMPANY
Items
1. X901 Rear Window Defogger Wiring Harness to Rear Door Door Wiring Harness - Left (C49) X901 Rear Window Defogger Wiring Harness to Rear Door Door Wiring Harness - Left
2. X411 Rear Door Door Wiring Harness - Left to Body Wiring Harness (Passenger/Cargo) X411 Rear Door Door Wiring Harness - Left to Body Wiring Harness
