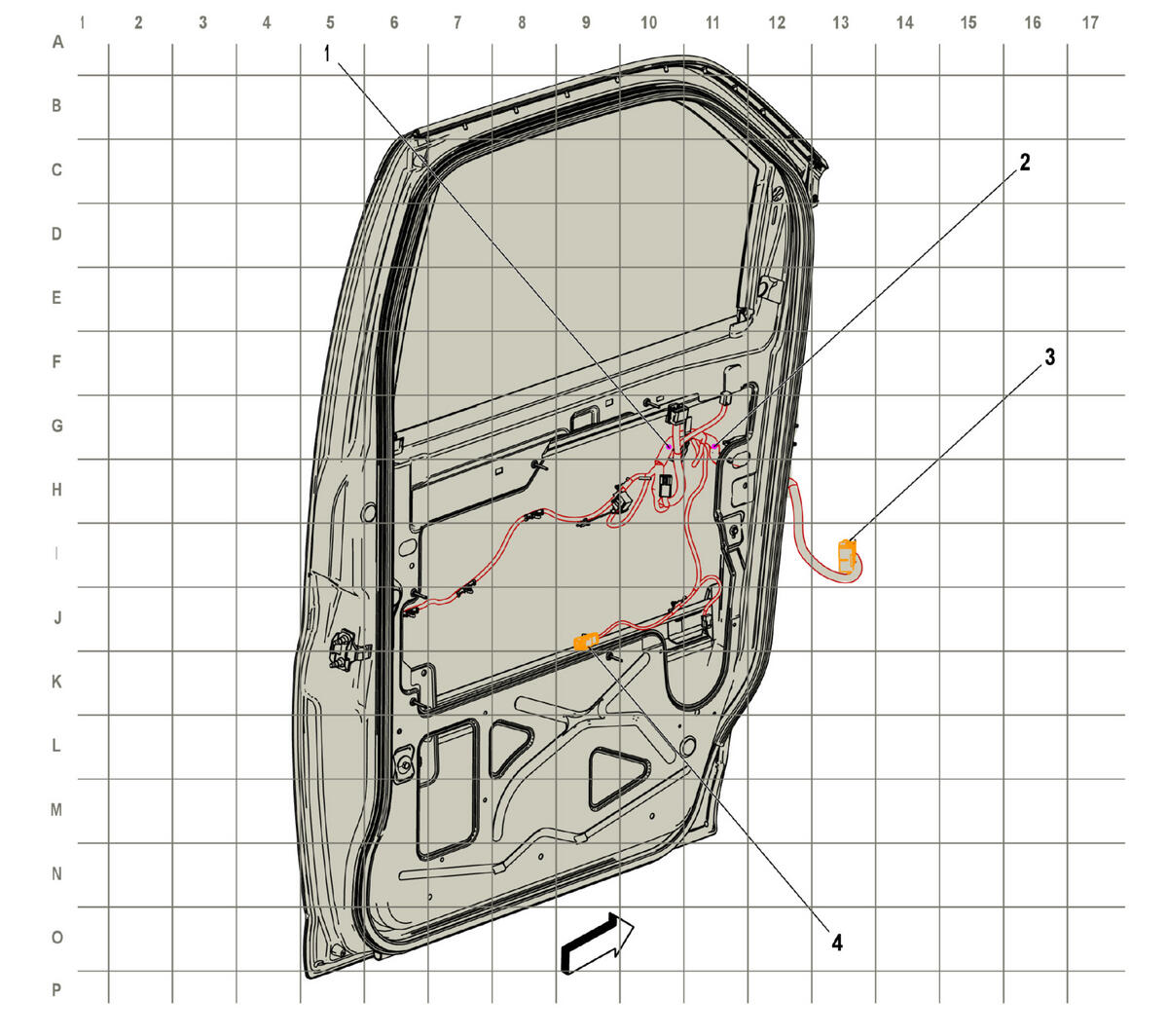

Door Harness Routing - Driver Door
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J500 Driver Door Wiring Harness (AU3/DE5/A31) |
| 2. J502 Driver Door Wiring Harness (DE5) |
| 3. X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness |
| 4. X501 Airbag Wiring Harness to Front Side Door Door Wiring Harness - Driver (ASF) X501 Airbag Wiring Harness to Front Side Door Door Wiring Harness - Driver |
