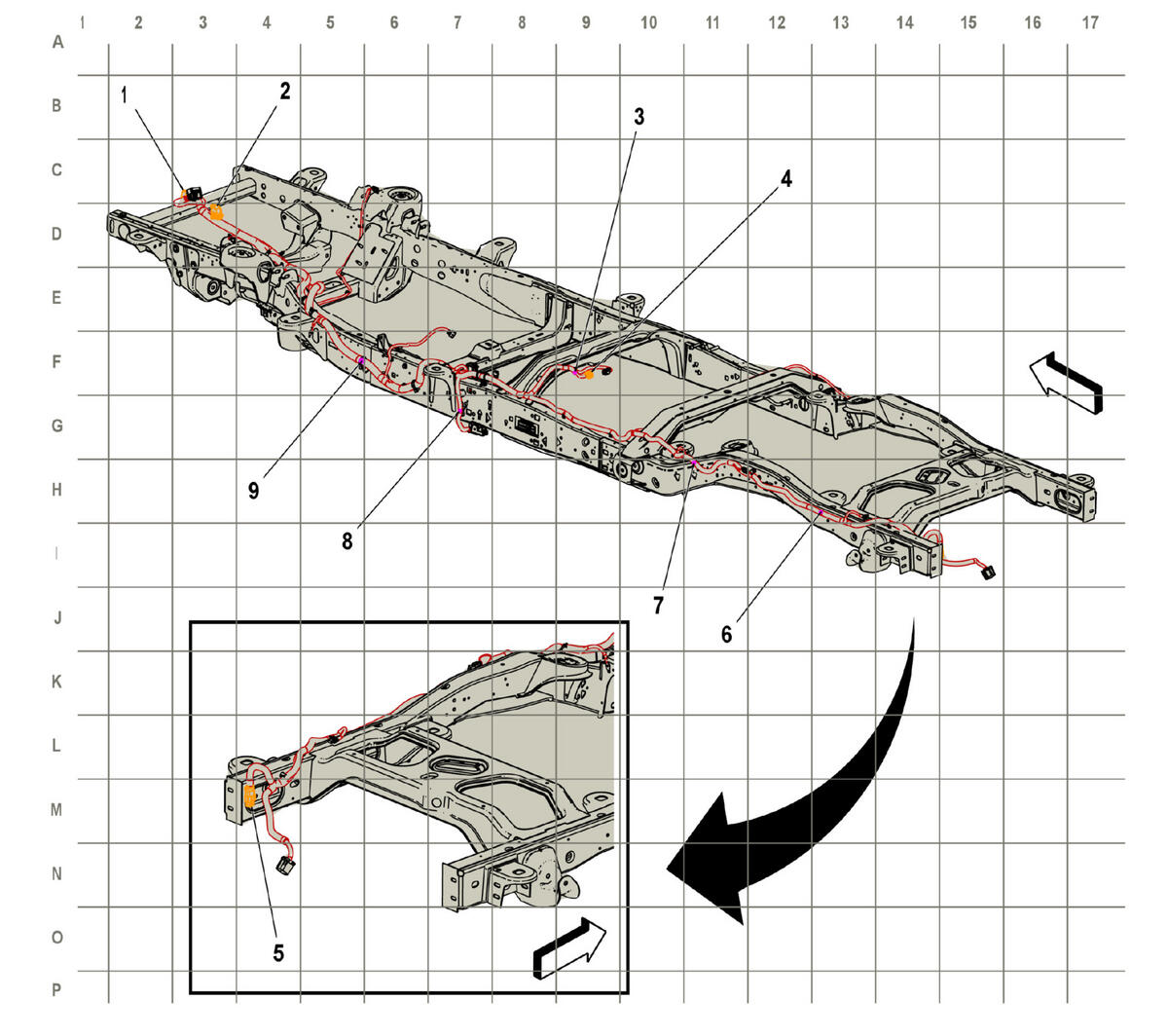

Chassis Harness Routing - Underbody (Passenger or Cargo with SWB)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X185 Instrument Panel Wiring Harness to Chassis Wiring Harness X185 Instrument Panel Wiring Harness to Chassis Wiring Harness |
| 2. X101 Engine Wiring Harness to Chassis Wiring Harness X101 Engine Wiring Harness to Chassis Wiring Harness |
| 3. J432 Chassis Wiring Harness |
| 4. X102 Chassis Wiring Harness to Fuel Tank Wiring Harness X102 Chassis Wiring Harness to Fuel Tank Wiring Harness |
| 5. X408 Rear Object Alarm Sensor Wiring Harness to Chassis Wiring Harness (UD7/UFT) X408 Rear Object Alarm Sensor Wiring Harness to Chassis Wiring Harness |
| 6. J404 Chassis Wiring Harness |
| 7. J402 Chassis Wiring Harness |
| 8. J431 Chassis Wiring Harness |
| 9. J315 Chassis Wiring Harness |
