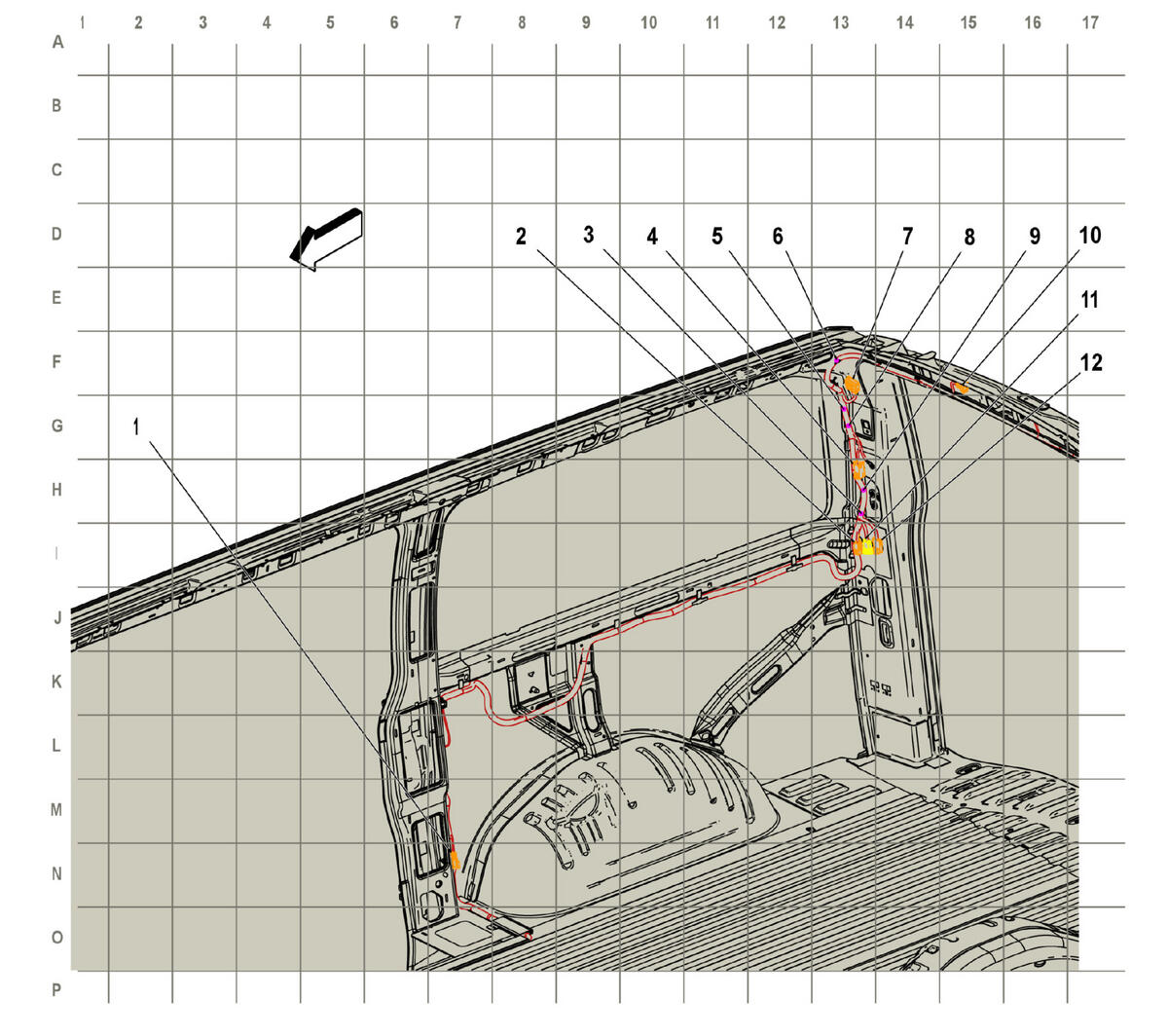

Body Harness Routing - Right Rear Passenger Compartment (Passenger)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X324 Airbag Wiring Harness to Body Wiring Harness (ASF) X324 Airbag Wiring Harness to Body Wiring Harness |
| 2. X403 Rear Door Door Wiring Harness to Body Wiring Harness (UVC) X403 Rear Door Door Wiring Harness to Body Wiring Harness (-Cutaway) , or X403 Rearview Camera Wiring Harness to Body Wiring Harness (Cutaway) |
| 3. J376 Body Wiring Harness (Cargo/Passenger) |
| 4.. X420 Tail Lamp Wiring Harness to Body Wiring Harness (Passenger/Cargo) X420 Tail Lamp Wiring Harness to Body Wiring Harness |
| 5. J450 Body Wiring Harness |
| 6. J403 Body Wiring Harness (Cargo/Passenger) |
| 7. X421 Roof Console Wiring Harness to Body Wiring Harness X421 Roof Console Wiring Harness to Body Wiring Harness |
| 8. J451 Body Wiring Harness |
| 9. X403 Rear Door Door Wiring Harness to Body Wiring Harness (UVC) X403 Rear Door Door Wiring Harness to Body Wiring Harness (-Cutaway) , or X403 Rearview Camera Wiring Harness to Body Wiring Harness (Cutaway) |
| 10. X415 Radio Rear Speaker Wiring Harness to Body Wiring Harness (Passenger/Cargo) X415 Radio Rear Speaker Wiring Harness to Body Wiring Harness |
| 11. X400 Rear Door Door Wiring Harness to Body Wiring Harness (Passenger/Cargo) X400 Rear Door Door Wiring Harness to Body Wiring Harness |
| 12. X412 Rear Door Door Wiring Harness to Body Wiring Harness (Passenger/Cargo) X412 Rear Door Door Wiring Harness to Body Wiring Harness |
