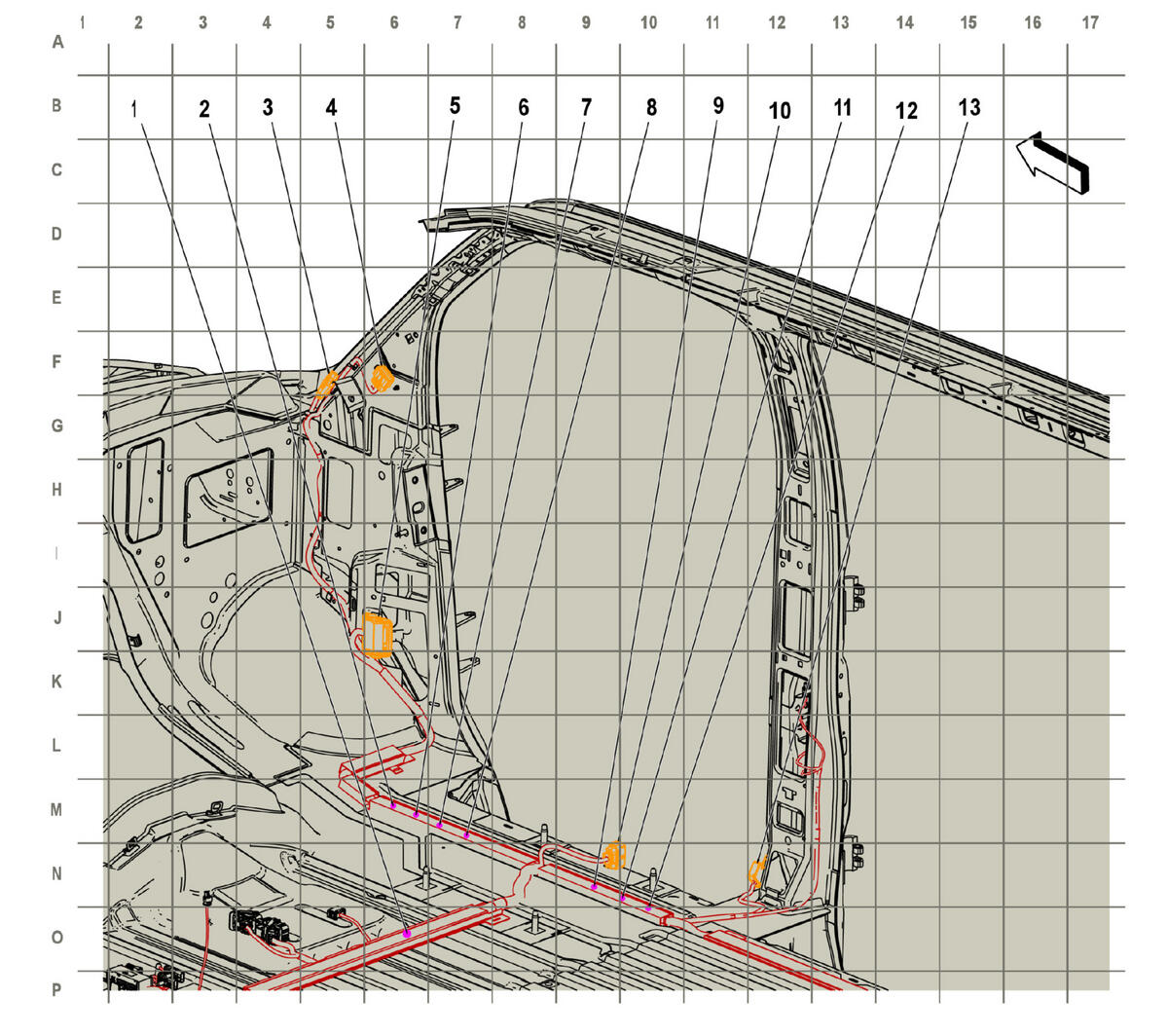

Body Harness Routing - Right Front Passenger Compartment
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J359 Body Wiring Harness (U80) |
| 2. J323 Body Wiring Harness (Cargo/Passenger with AU3) |
| 3. X205 Roof Console Wiring Harness to Body Wiring Harness X205 Roof Console Wiring Harness to Body Wiring Harness |
| 4. X204 Body Wiring Harness to Roof Console Wiring Harness X204 Body Wiring Harness to Roof Console Wiring Harness |
| 5. X600 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness X600 Front Side Door Door Wiring Harness - Passenger to Body Wiring Harness |
| 6. J322 Body Wiring Harness (Cargo/Passenger with AU3) |
| 7. J308 Body Wiring Harness (C69) |
| 8. J334 Body Wiring Harness (UVC) |
| 9. J311 Body Wiring Harness (C69) |
| 10. X306 Body Wiring Harness to Seat Wiring Harness - Passenger X306 Body Wiring Harness to Seat Wiring Harness - Passenger |
| 11. J310 Body Wiring Harness (C69) |
| 12. J331 Body Wiring Harness (Passenger) |
| 13. JX348 Body Wiring Harness JX348 Splice Pack |
