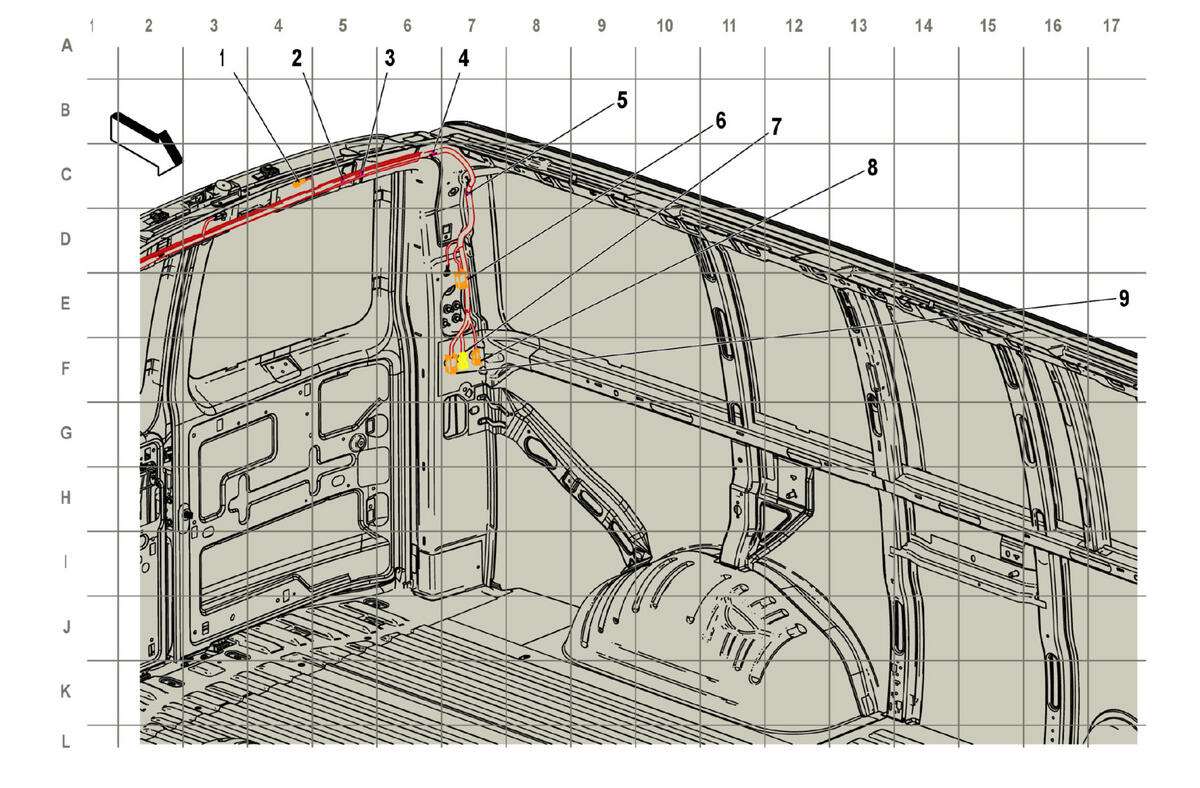

Body Harness Routing - Left Rear Passenger Compartment (Passenger)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X419 Center High Mounted Stop Lamp Jumper Wiring Harness to Body Wiring Harness (Passenger/Cargo) X419 Center High Mounted Stop Lamp Jumper Wiring Harness to Body Wiring Harness |
| 2. J452 Body Wiring Harness |
| 3. J453 Body Wiring Harness |
| 4. J410 Body Wiring Harness (Cargo/Passenger) |
| 5. J401 Body Wiring Harness (C36/C49/C69) |
| 6. X410 Tail Lamp Wiring Harness to Body Wiring Harness (Passenger/Cargo) X410 Tail Lamp Wiring Harness to Body Wiring Harness |
| 7. X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness |
| 8. X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness |
| 9. X411 Rear Door Door Wiring Harness - Left to Body Wiring Harness (Passenger/Cargo) X411 Rear Door Door Wiring Harness - Left to Body Wiring Harness |
