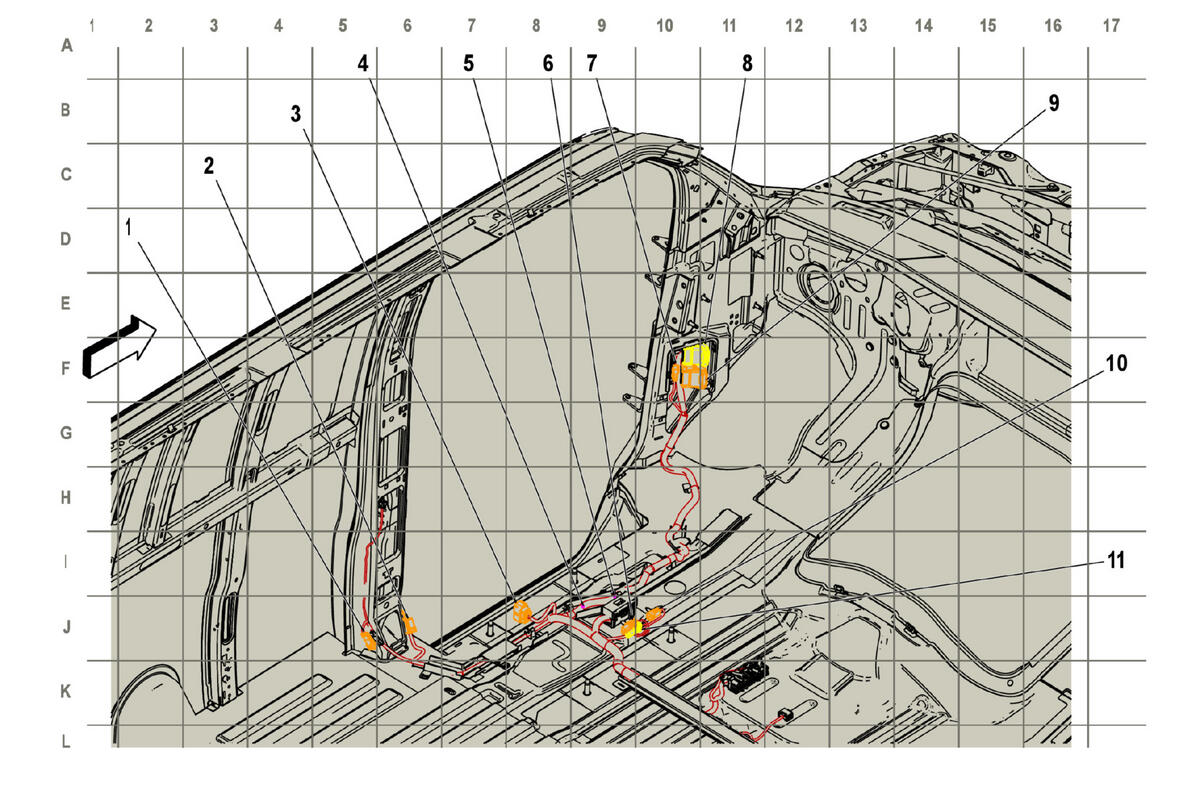

Body Harness Routing - Left Front Passenger Compartment (Passenger)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X323 Airbag Wiring Harness to Body Wiring Harness (ASF) X323 Airbag Wiring Harness to Body Wiring Harness |
| 2. JX347 Body Wiring Harness JX347 Splice Pack |
| 3. X307 Body Wiring Harness to Seat Wiring Harness - Driver X307 Body Wiring Harness to Seat Wiring Harness - Driver |
| 4. J357 Body Wiring Harness |
| 5. J356 Body Wiring Harness |
| 6. X331 Instrument Panel Wiring Harness to Body Wiring Harness X331 Instrument Panel Wiring Harness to Body Wiring Harness |
| 7. X319 Auxiliary Heater Front Wiring Harness to Body Wiring Harness (ENC/C69/C36) X319 Auxiliary Heater Front Wiring Harness to Body Wiring Harness |
| 8. X318 Instrument Panel Wiring Harness to Body Wiring Harness X318 Instrument Panel Wiring Harness to Body Wiring Harness |
| 9. X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness |
| 10. X329 Instrument Panel Wiring Harness to Body Wiring Harness (UVC) X329 Instrument Panel Wiring Harness to Body Wiring Harness |
| 11. X330 Instrument Panel Wiring Harness to Body Wiring Harness X330 Instrument Panel Wiring Harness to Body Wiring Harness |
