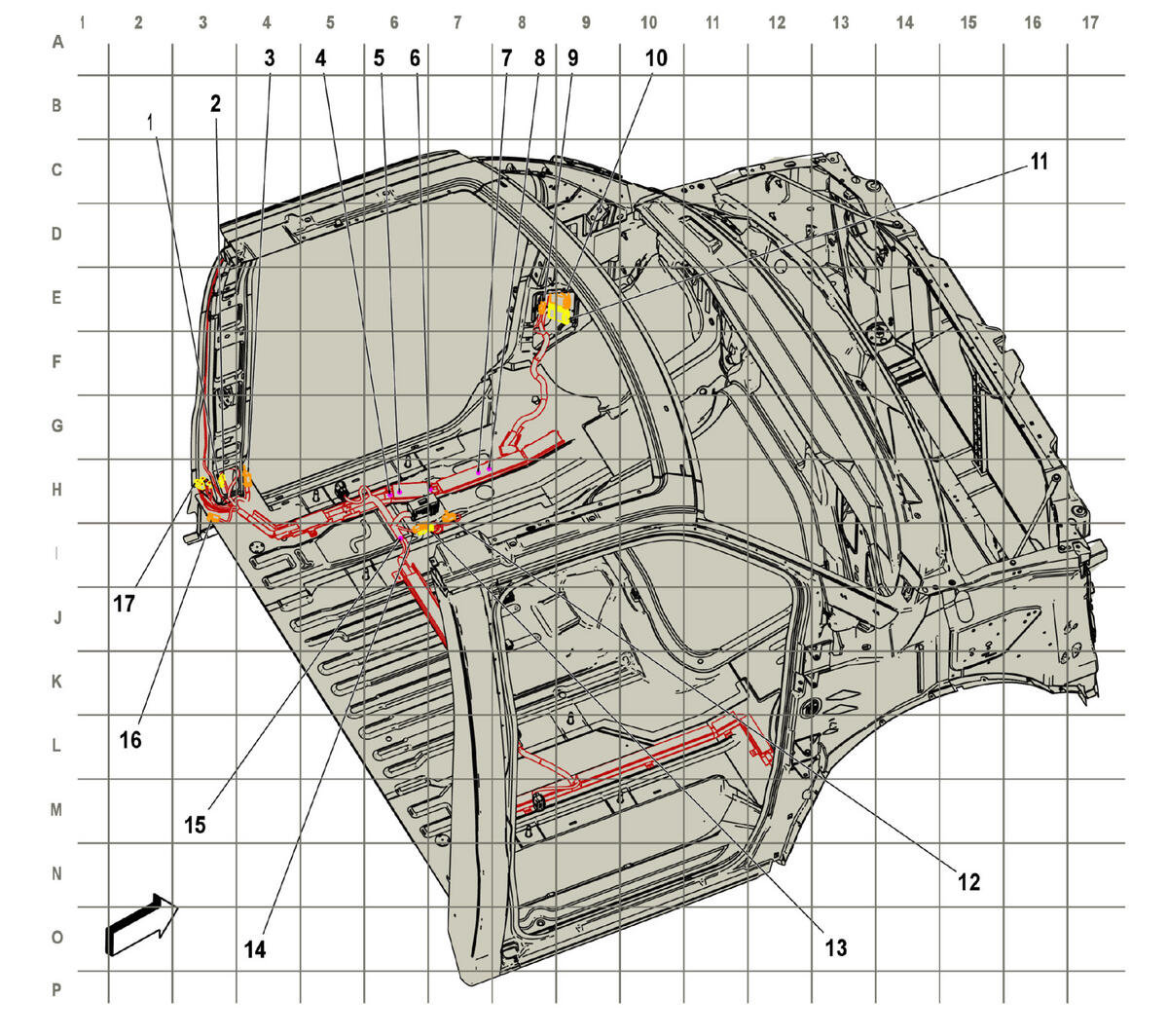

Body Harness Routing - Left Front Passenger Compartment (Cutaway)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness
2. X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness
3. JX347 Body Wiring Harness JX347 Splice Pack
4. J311 Body Wiring Harness (C69)
5. J310 Body Wiring Harness (C69)
6. J308 Body Wiring Harness (C69)
7. J357 Body Wiring Harness
8. J355 Front Headliner Wiring Harness (C69 with YF7)
9. X319 Auxiliary Heater Front Wiring Harness to Body Wiring Harness (ENC/C69/C36) X319 Auxiliary Heater Front Wiring Harness to Body Wiring Harness
10. X318 Instrument Panel Wiring Harness to Body Wiring Harness X318 Instrument Panel Wiring Harness to Body Wiring Harness
11. X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness X500 Front Side Door Door Wiring Harness - Driver to Body Wiring Harness
12. X329 Instrument Panel Wiring Harness to Body Wiring Harness (UVC) X329 Instrument Panel Wiring Harness to Body Wiring Harness
13. X330 Instrument Panel Wiring Harness to Body Wiring Harness X330 Instrument Panel Wiring Harness to Body Wiring Harness
14. X331 Instrument Panel Wiring Harness to Body Wiring Harness X331 Instrument Panel Wiring Harness to Body Wiring Harness
15. J334 Body Wiring Harness (UVC)
16. X403 Rear Door Door Wiring Harness to Body Wiring Harness (UVC) X403 Rear Door Door Wiring Harness to Body Wiring Harness (-Cutaway) , or X403 Rearview Camera Wiring Harness to Body Wiring Harness (Cutaway)
17. W22 Blunt Cut - Rear Speaker Provision (CUTAWAY with YF1)
