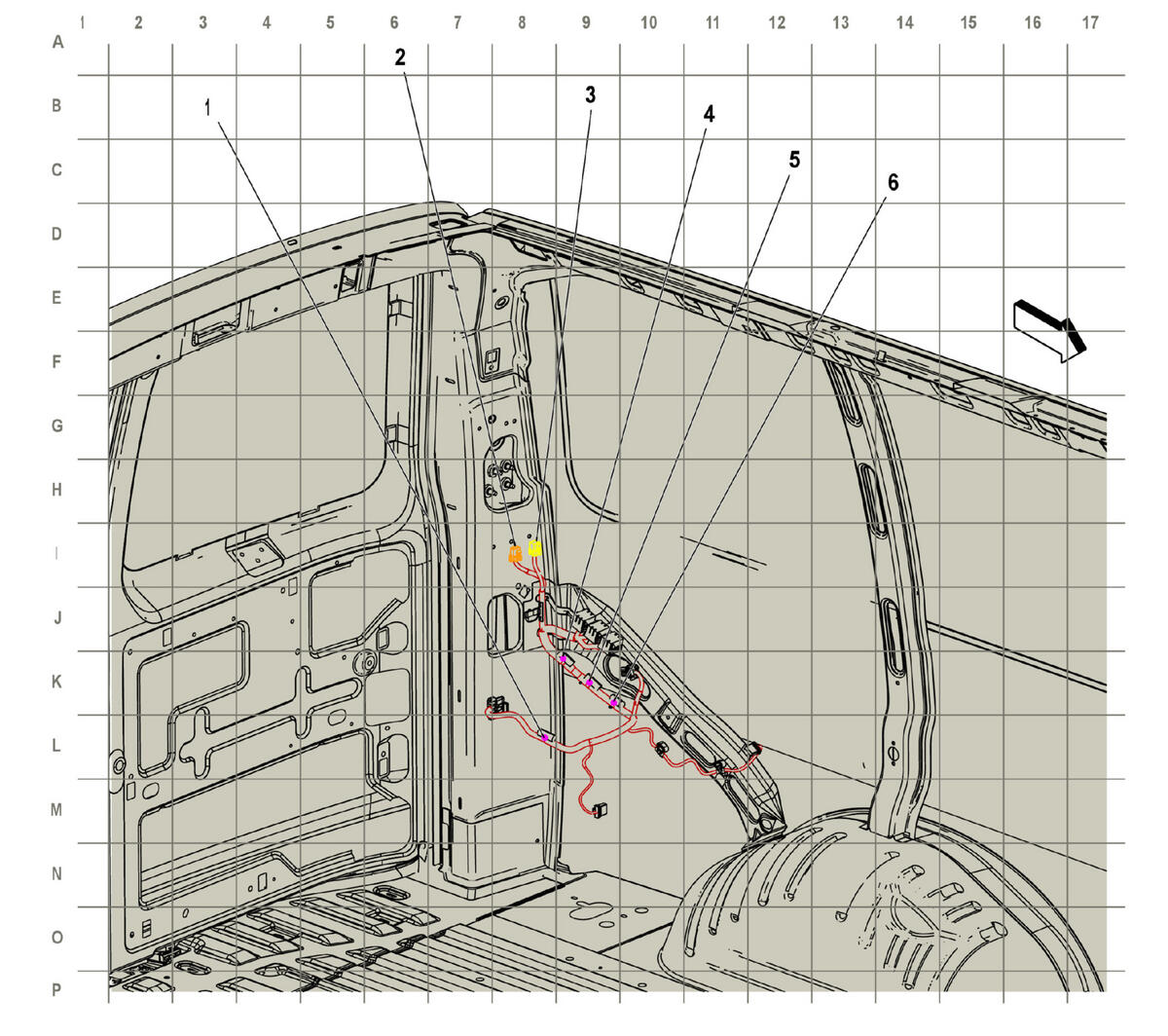

Auxiliary HVAC Harness Routing - Left Rear Passenger Compartment (C36/C69)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J413 Rear HVAC Wiring Harness (C36/C70) |
| 2. X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X409 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness |
| 3. X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness (C36/C69) X407 Auxiliary Heater and Air Conditioning Wiring Harness to Body Wiring Harness |
| 4. J412 Rear HVAC Wiring Harness (C36/C69) |
| 5. J405 Rear HVAC Wiring Harness (C36/C69) |
| 6. J411 Rear HVAC Wiring Harness (C69) |
