Frame and Underbody Components (With NE7)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

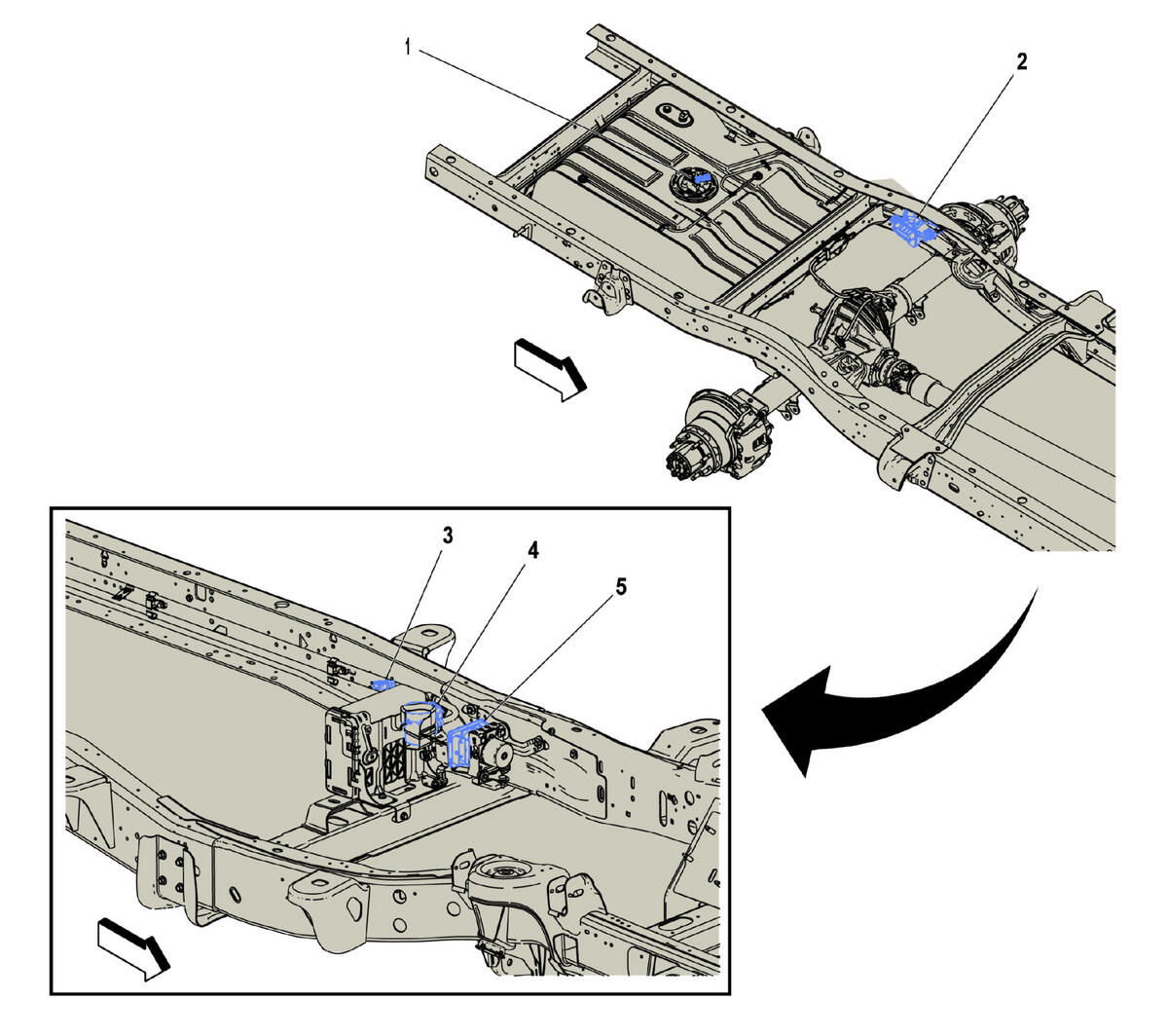

GM6003028Courtesy of GENERAL MOTORS COMPANY
Items
1. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor
2. K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module
3. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor (-Cutaway Chassis) , or B47 Fuel Pressure Sensor (Cutaway Chassis)
4. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve
5. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
