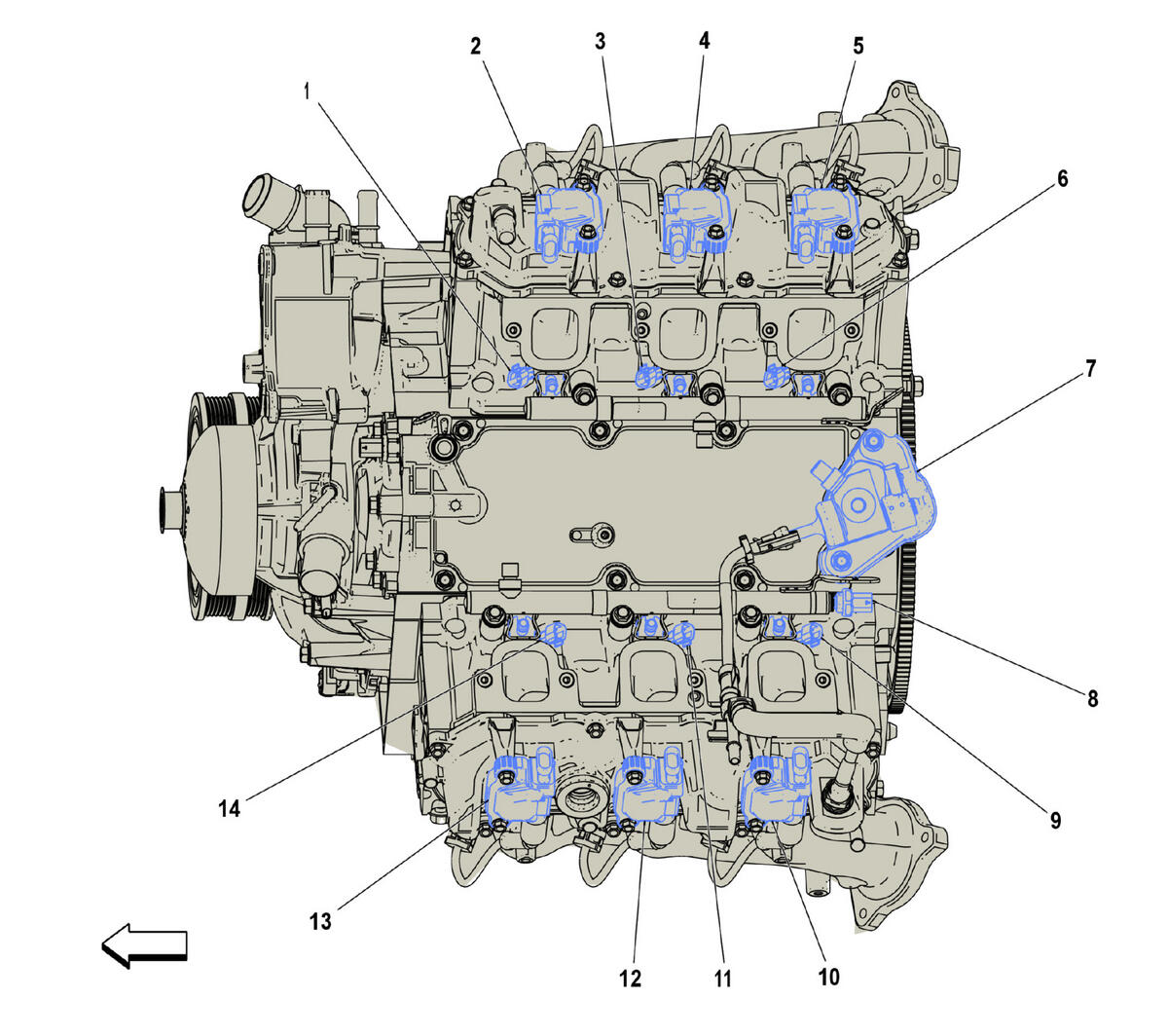

Top of the Engine Components (LV1)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 2. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 3. Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 4. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 5. T8F Ignition Coil 6 T8F Ignition Coil 6 |
| 6. Q17F Fuel Injector 6 Q17F Fuel Injector 6 |
| 7. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 8. B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor |
| 9. Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 10. T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 11. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 12. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 13. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 14. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
