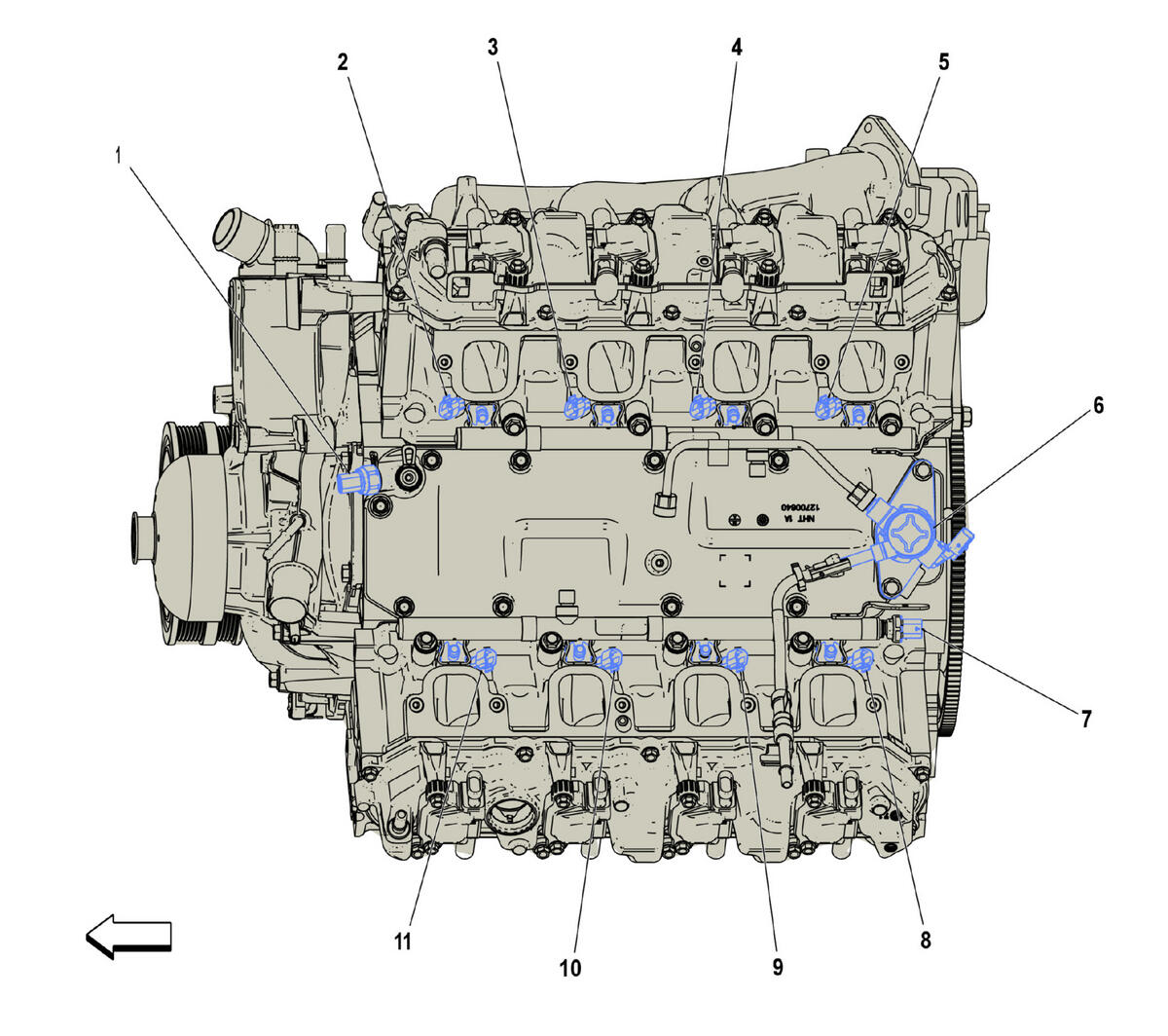

Top of Engine Components (L8T)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 2. Q17B Fuel Injector 2 Q17B Fuel Injector 2 |
| 3. Q17D Fuel Injector 4 Q17D Fuel Injector 4 |
| 4. Q17F Fuel Injector 6 Q17F Fuel Injector 6 |
| 5. Q17H Fuel Injector 8 (L8T) Q17H Fuel Injector 8 (L8T) |
| 6. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 7. B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor |
| 8. Q17G Fuel Injector 7 (L8T) Q17G Fuel Injector 7 (L8T) |
| 9. Q17E Fuel Injector 5 Q17E Fuel Injector 5 |
| 10. Q17C Fuel Injector 3 Q17C Fuel Injector 3 |
| 11. Q17A Fuel Injector 1 Q17A Fuel Injector 1 |
