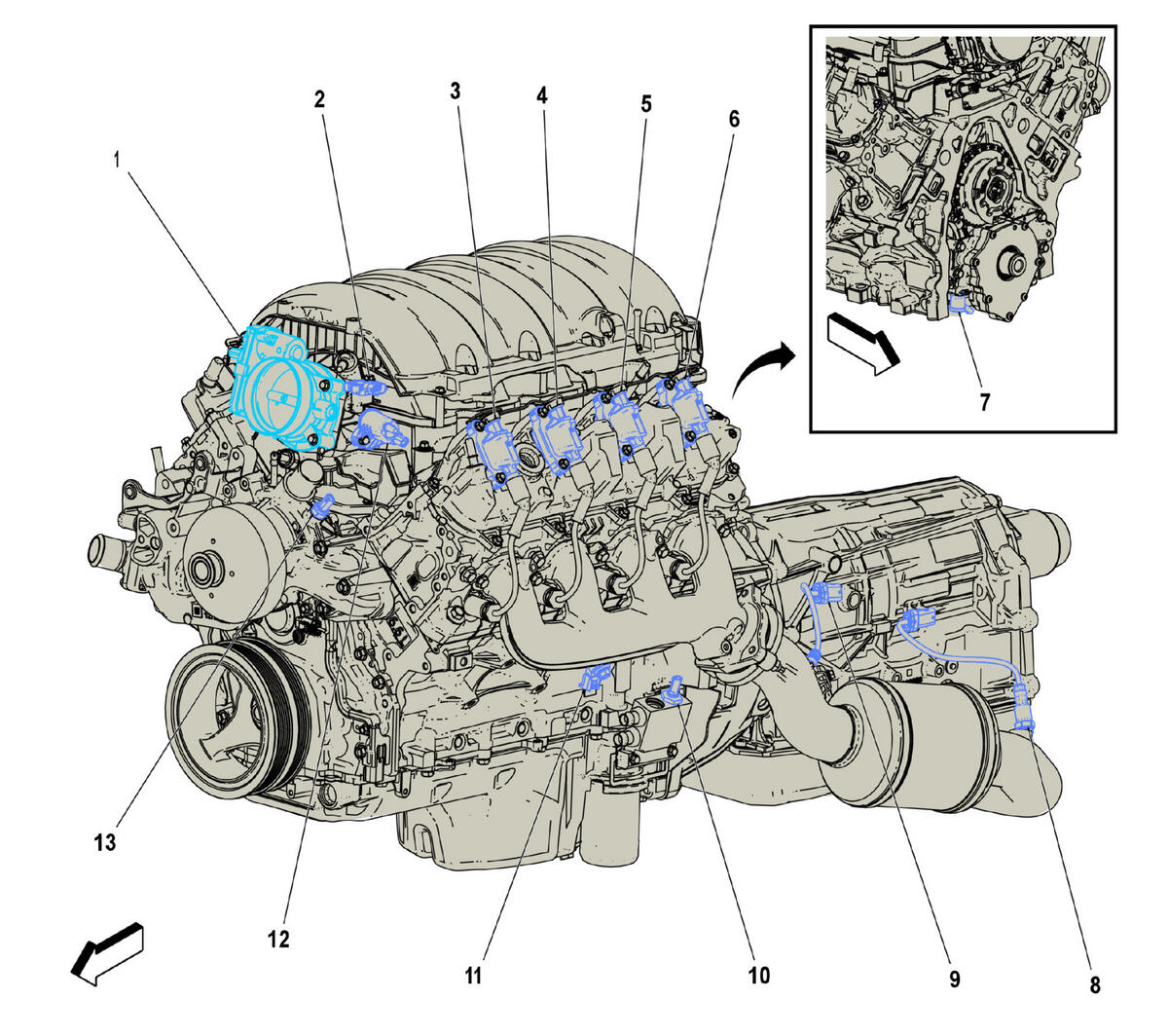

Right Side of the Engine Components (L8T)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. Q38 Throttle Body Q38 Throttle Body |
| 2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 4. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 5. T8E Ignition Coil 5 T8E Ignition Coil 5 |
| 6. T8G Ignition Coil 7 (L8T) T8G Ignition Coil 7 |
| 7. Q44 Engine Oil Pressure Control Solenoid Valve (L8T) Q44 Engine Oil Pressure Control Solenoid Valve (L8T) |
| 8. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
| 9. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
| 10. B36 Engine Oil Temperature Sensor (L8T) B36 Engine Oil Temperature Sensor |
| 11. B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 12. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 13. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (L8T) |
