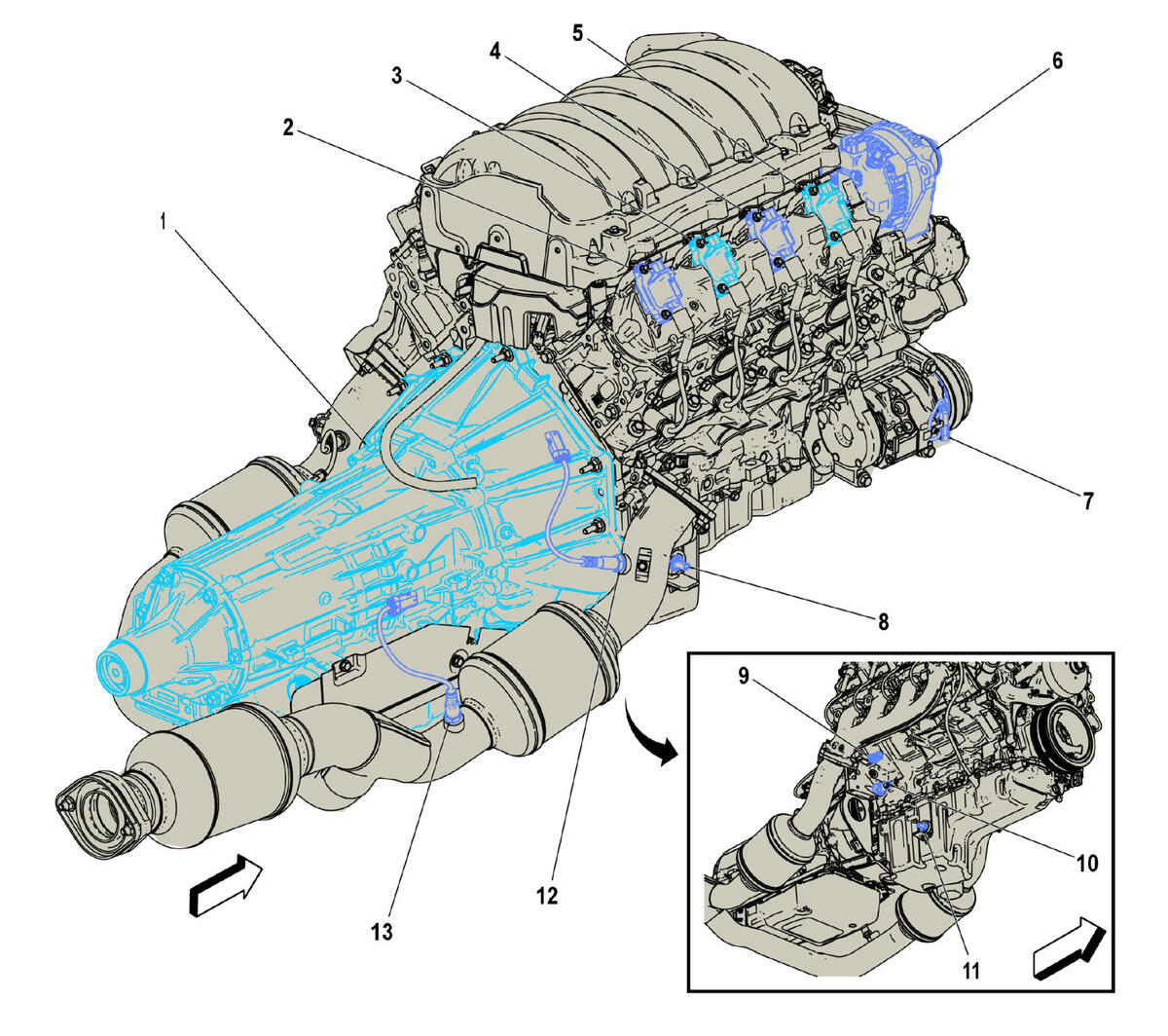

Left Side of the Engine Components (L8T)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. T12 Automatic Transmission Assembly T12 Automatic Transmission Assembly |
| 2. T8H Ignition Coil 8 (L8T) T8H Ignition Coil 8 |
| 3. T8F Ignition Coil 6 T8F Ignition Coil 6 |
| 4. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 5. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 6. G13 Generator G13 Generator X1 , or G13 Generator X2 (L8T+KG4+TP3) , or G13 Generator X2 (L8T+KG4-TP3) , or G13 Generator X2 (L8T+KW5+TP3) , or G13 Generator X2 (L8T+KW5-TP3) |
| 7. Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch |
| 8. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (L8T) |
| 9. B68B Knock Sensor 2 B68B Knock Sensor 2 |
| 10. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 11. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (L8T) |
| 12. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 |
| 13. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 |
