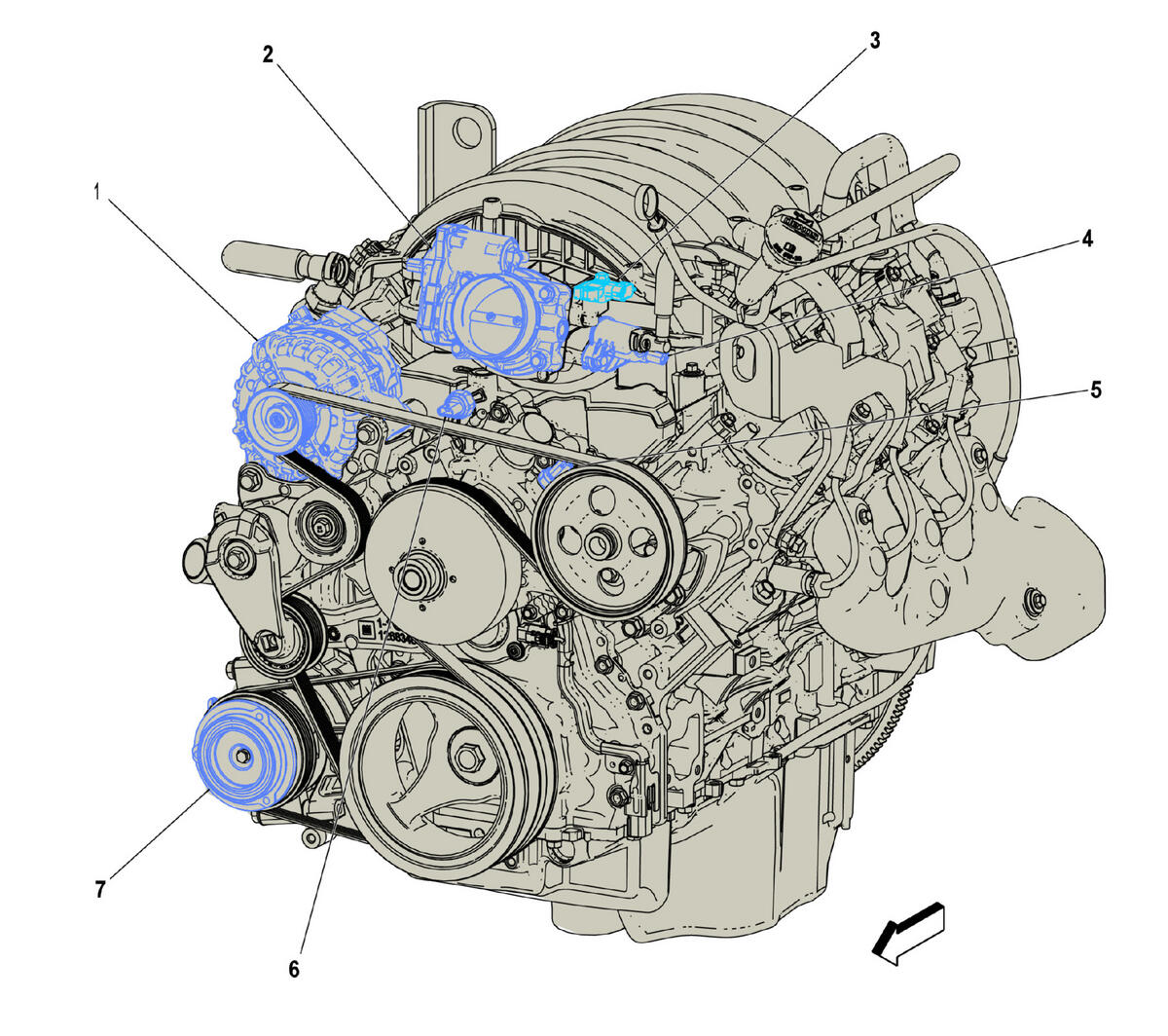

Front of the Engine Components (LV1)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. G13 Generator G13 Generator X1 , or G13 Generator X2 (LV1+K68) , or G13 Generator X2 (LV1+KW5) |
| 2. Q38 Throttle Body Q38 Throttle Body |
| 3. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 5. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LV1) |
| 6. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 7. Q2 A/C Compressor Clutch (C60) Q2 A/C Compressor Clutch |
