Headliner Components - Rear

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

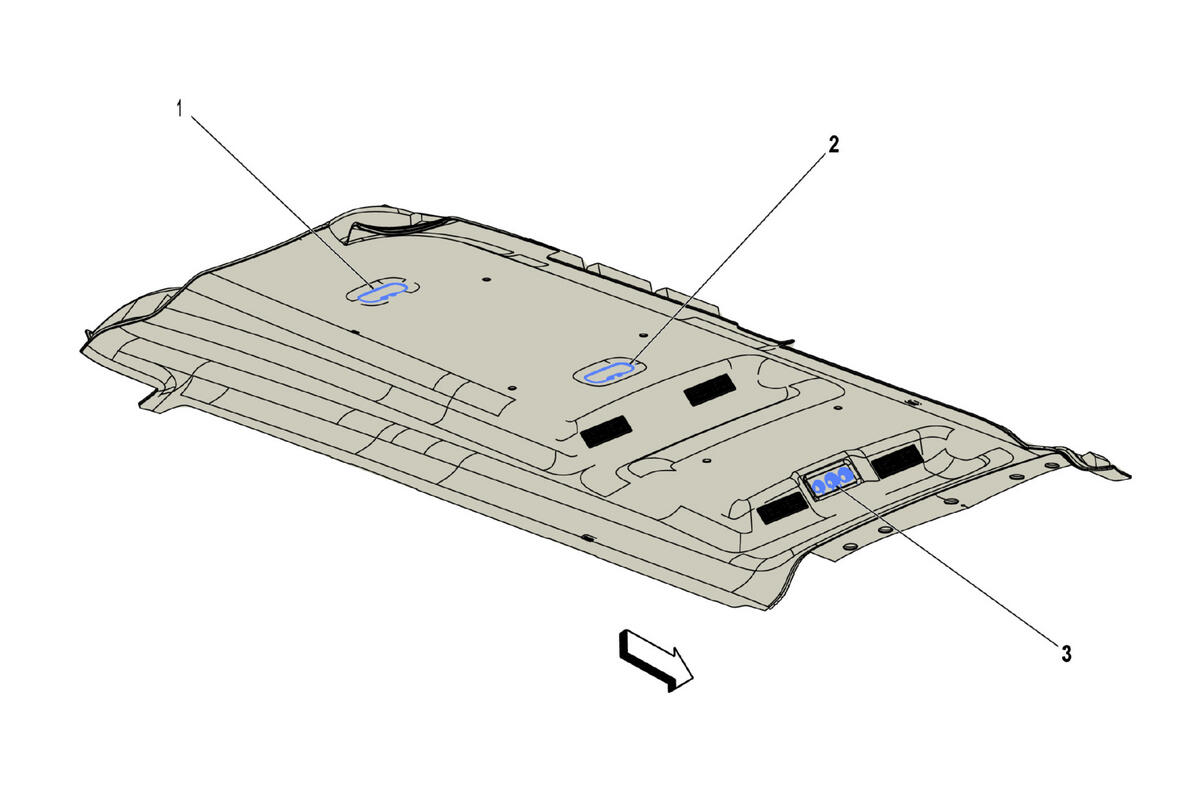

GM6003017Courtesy of GENERAL MOTORS COMPANY
Items
1. E37R Dome/Reading Lamps - Rear (Passenger) E37R Dome/Reading Lamps - Rear
2. E37M Dome/Reading Lamps - Middle (Passenger) E37M Dome/Reading Lamps - Middle
3. S34R HVAC Controls Switch Assembly - Auxiliary Rear (C36/C69 with Rear HVAC Controls) S34R HVAC Controls Switch Assembly - Auxiliary Rear
