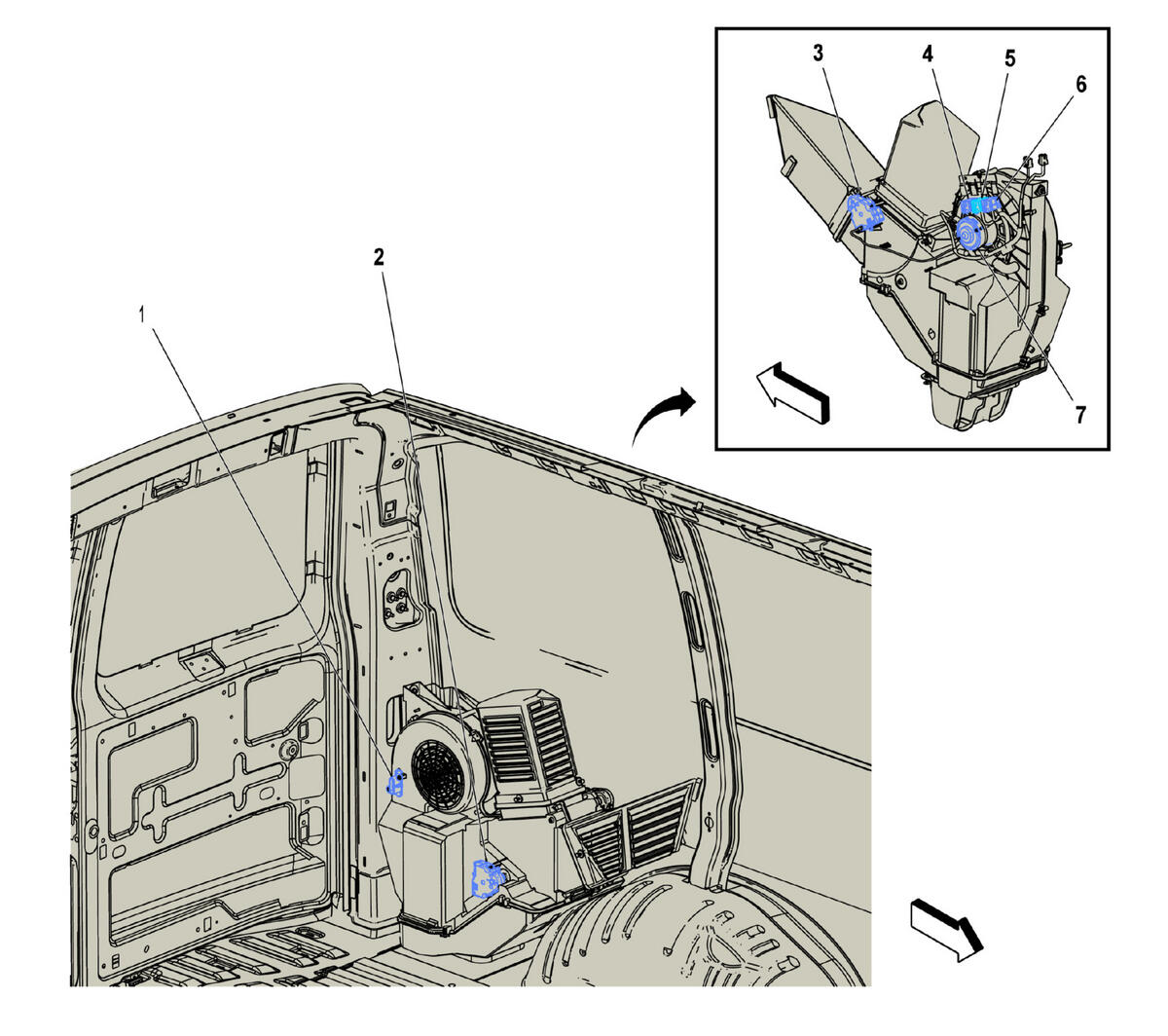

Auxiliary HVAC Components (C36/C69)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. R3B Blower Motor Resistor - Auxiliary (C36/C69) R3B Blower Motor Resistor - Auxiliary |
| 2. M6B Air Temperature Door Actuator - Auxiliary (C69) M6B Air Temperature Door Actuator - Auxiliary |
| 3. M37B Mode Door Actuator - Auxiliary (C69) M37B Mode Door Actuator - Auxiliary |
| 4. KR32B Blower Motor High Speed Relay - Auxiliary KR32B Blower Motor High Speed Relay - Auxiliary |
| 5. KR32D Blower Motor Medium Speed Relay - Auxiliary KR32D Blower Motor Medium Speed Relay - Auxiliary |
| 6. KR32C Blower Motor Low Speed Relay - Auxiliary KR32C Blower Motor Low Speed Relay - Auxiliary |
| 7. M6B Air Temperature Door Actuator - Auxiliary (C69) M6B Air Temperature Door Actuator - Auxiliary |
