Airbag Impact Sensor Components (YA2)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

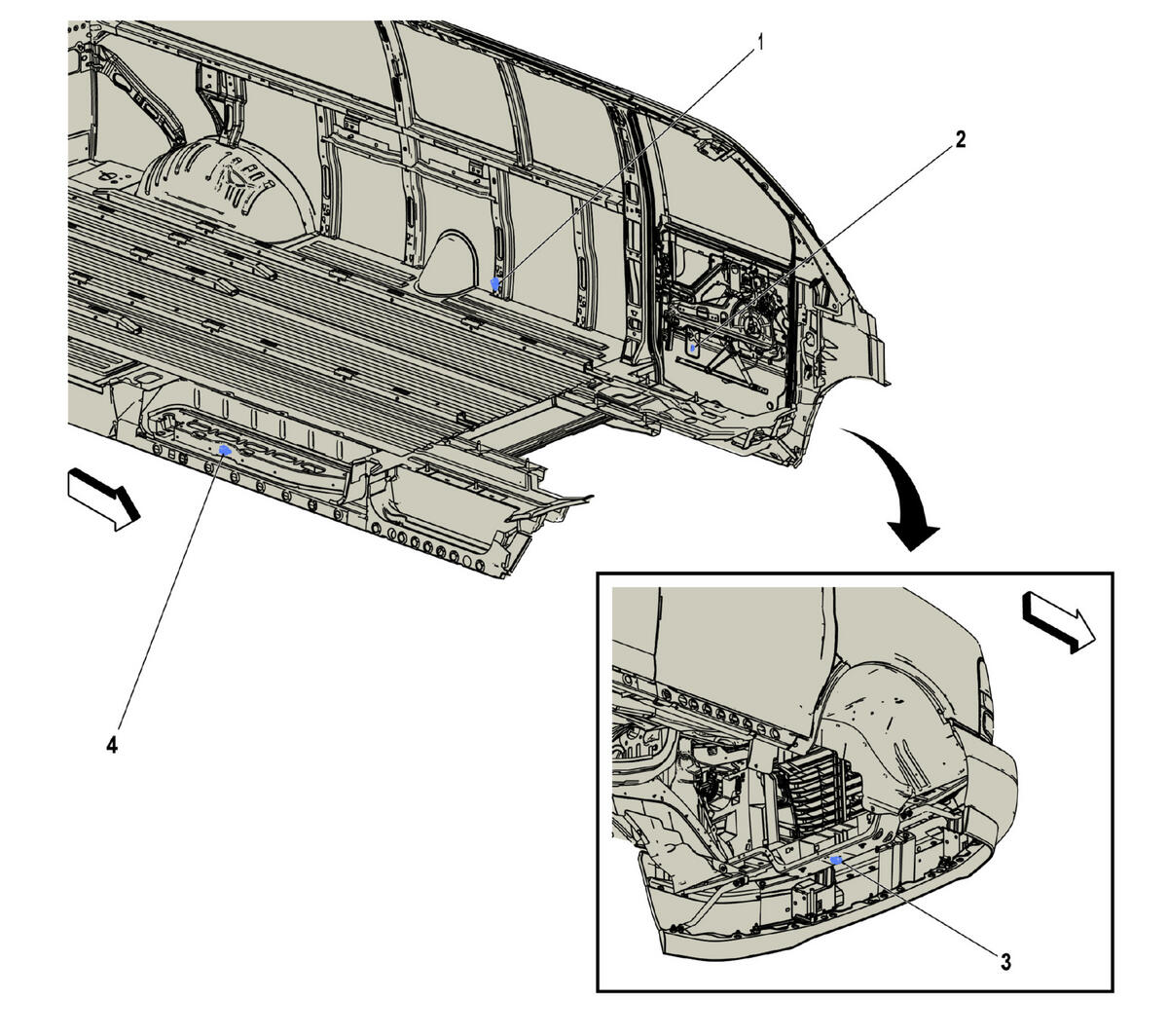

GM6003435Courtesy of GENERAL MOTORS COMPANY
Items
1. B63LR Side Impact Sensor - Left Rear (ASF) B63LR Side Impact Sensor - Left Rear
2. B63LF Side Impact Sensor - Left Front (ASF) B63LF Side Impact Sensor - Left Front
3. B59 Front Impact Sensor B59 Front Impact Sensor
4. B63RR Side Impact Sensor - Right Rear (ASF) B63RR Side Impact Sensor - Right Rear (YA2)
