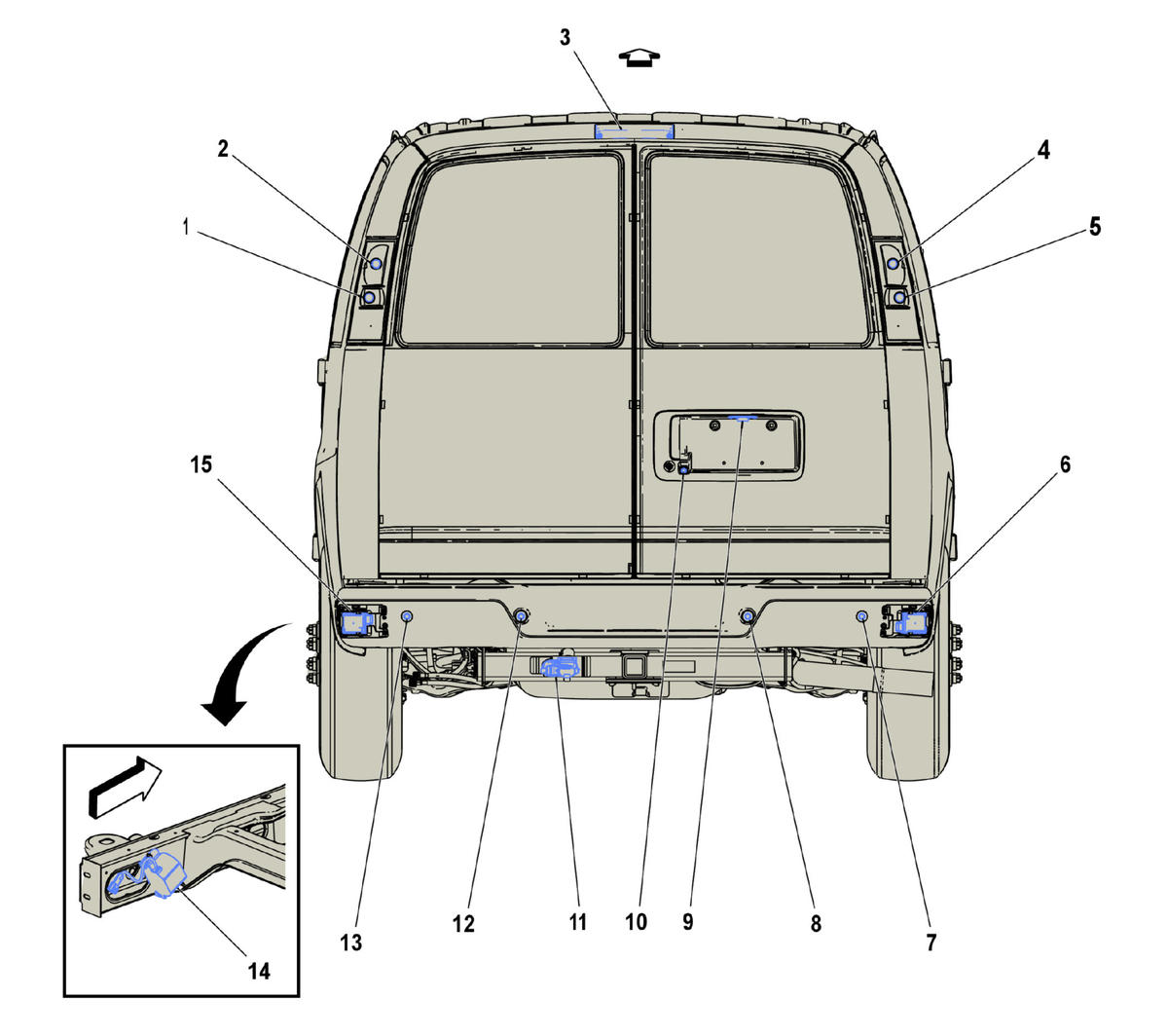

Rear of Vehicle Components (Passenger or Cargo)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. E5A Backup Lamp - Left E5A Backup Lamp - Left |
| 2. E5S Tail/Stop and Turn Signal Lamp - Left (Passenger/Cargo) E5S Tail/Stop and Turn Signal Lamp - Left |
| 3. E6 Center High Mounted Stop Lamp (Passenger/Cargo) E6 Center High Mounted Stop Lamp |
| 4. E5T Tail/Stop and Turn Signal Lamp - Right (Passenger/Cargo) E5T Tail/Stop and Turn Signal Lamp - Right |
| 5. E5B Backup Lamp - Right E5B Backup Lamp - Right |
| 6. B218R Side Object Sensor Module - Right (UFT) B218R Side Object Sensor Module - Right (UFT) |
| 7. B306H Parking Assist Sensor - Rear Right Outer (UD7) B306H Parking Assist Sensor - Rear Right Outer (UD7) |
| 8. B306G Parking Assist Sensor - Rear Right Middle (UD7) B306G Parking Assist Sensor - Rear Right Middle (UD7) |
| 9. E7 License Plate Lamp (Passenger/Cargo) E7 License Plate Lamp |
| 10. B87 Rearview Camera (UVC) B87 Rearview Camera (-Cutaway) , or B87 Rearview Camera (Cutaway) |
| 11. X88 Trailer Connector (UY7) X88 Trailer Connector (-NE7) |
| 12. B306F Parking Assist Sensor - Rear Left Middle (UD7) B306F Parking Assist Sensor - Rear Left Middle (UD7) |
| 13. B306E Parking Assist Sensor - Rear Left Outer (UD7) B306E Parking Assist Sensor - Rear Left Outer (UD7) |
| 14. P3 Backup Alarm (8S3) P3 Backup Alarm (-Cutaway) , or P3 Backup Alarm (Cutaway) |
| 15. B218L Side Object Sensor Module - Left (UFT) B218L Side Object Sensor Module - Left (UFT) |
