Steering Column Components (1 of 2)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

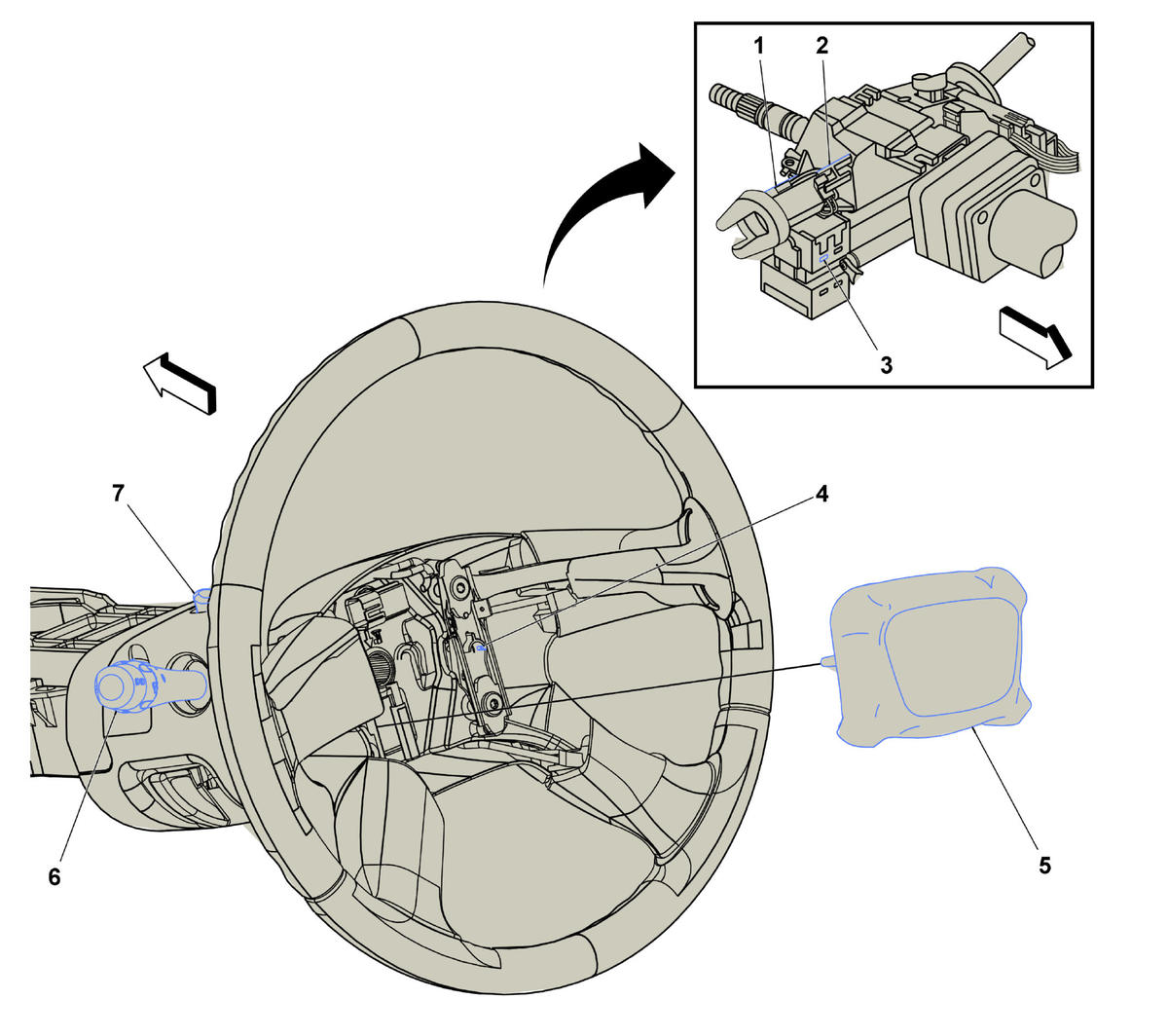

GM2831279Courtesy of GENERAL MOTORS COMPANY
Items
1. K64 Content Theft Deterrent Control Module K64 Content Theft Deterrent Control Module
2. M7 Transmission Shift Lock Control Solenoid Actuator M7 Transmission Shift Lock Control Solenoid Actuator
3. S39 Ignition Switch S39 Ignition Switch
4. S33 Horn Switch S33 Horn Switch
5. F107 Steering Wheel Air Bag F107 Steering Wheel Air Bag
6. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch X1 , or S78 Turn Signal/Multifunction Switch X2 , or S78 Turn Signal/Multifunction Switch X3
7. S26 Hazard Warning Switch
