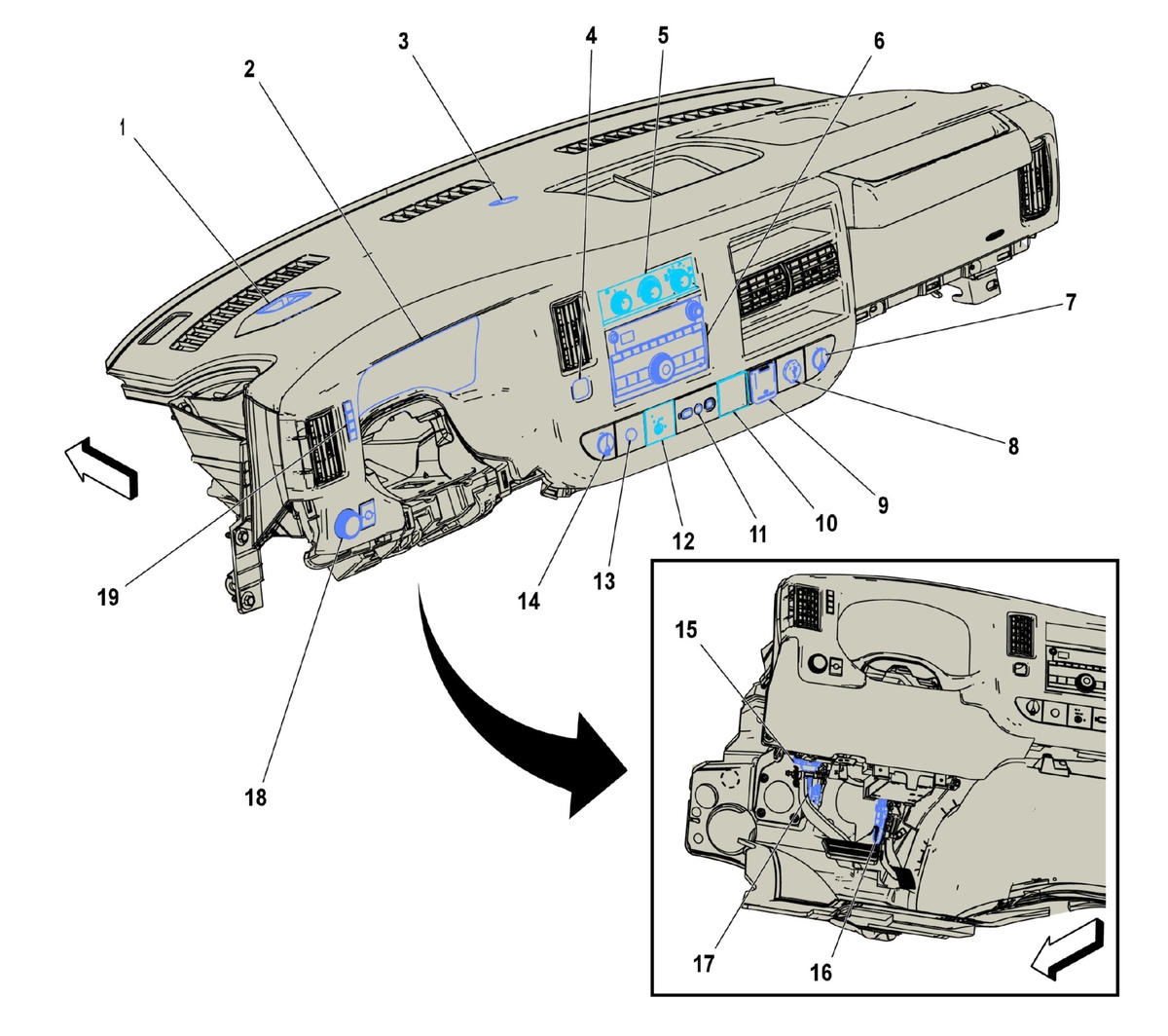

Instrument Panel Components (1 of 2)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Items
1. P43 Collision Alert Indicators (UFL) P43 Collision Alert Indicators
2. P16 Instrument Cluster P16 Instrument Cluster
3. B10 Ambient Light Sensor B10 Ambient Light Sensor
4. S74 Tow/Haul Mode Switch (MYD) S74 Tow/Haul Mode Switch
5. S34 HVAC Controls Switch Assembly S34 HVAC Controls Switch Assembly X1 , or S34 HVAC Controls Switch Assembly X2 , or S34 HVAC Controls Switch Assembly X3 , or S34 HVAC Controls Switch Assembly X4
6. A11 Radio A11 Radio X1 , or A11 Radio X2 , or A11 Radio X3 , or A11 Radio X6
7. X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2
8. X92 USB Receptacle (USR) X92 USB Receptacle
9. X81 Accessory Power Receptacle - 110V AC (KI4) X81 Accessory Power Receptacle - 110V AC X1 , or X81 Accessory Power Receptacle - 110V AC X2
10. S155 Lane Departure Warning Switch (UFL) S155 Lane Departure Warning Switch
11. S51 Telematics Button Assembly (UE1) S51 Telematics Button Assembly
12. S40 Passenger Air Bag Disable Switch (C99) S40 Passenger Air Bag Disable Switch
13. X84 Data Link Connector X84 Data Link Connector
14. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
15. X84 Data Link Connector X84 Data Link Connector
16. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
17. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
18. S30 Headlamp Switch S30 Headlamp Switch
19. S16 Driver Information Center Switch S16 Driver Information Center Switch
