G301 and G302

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

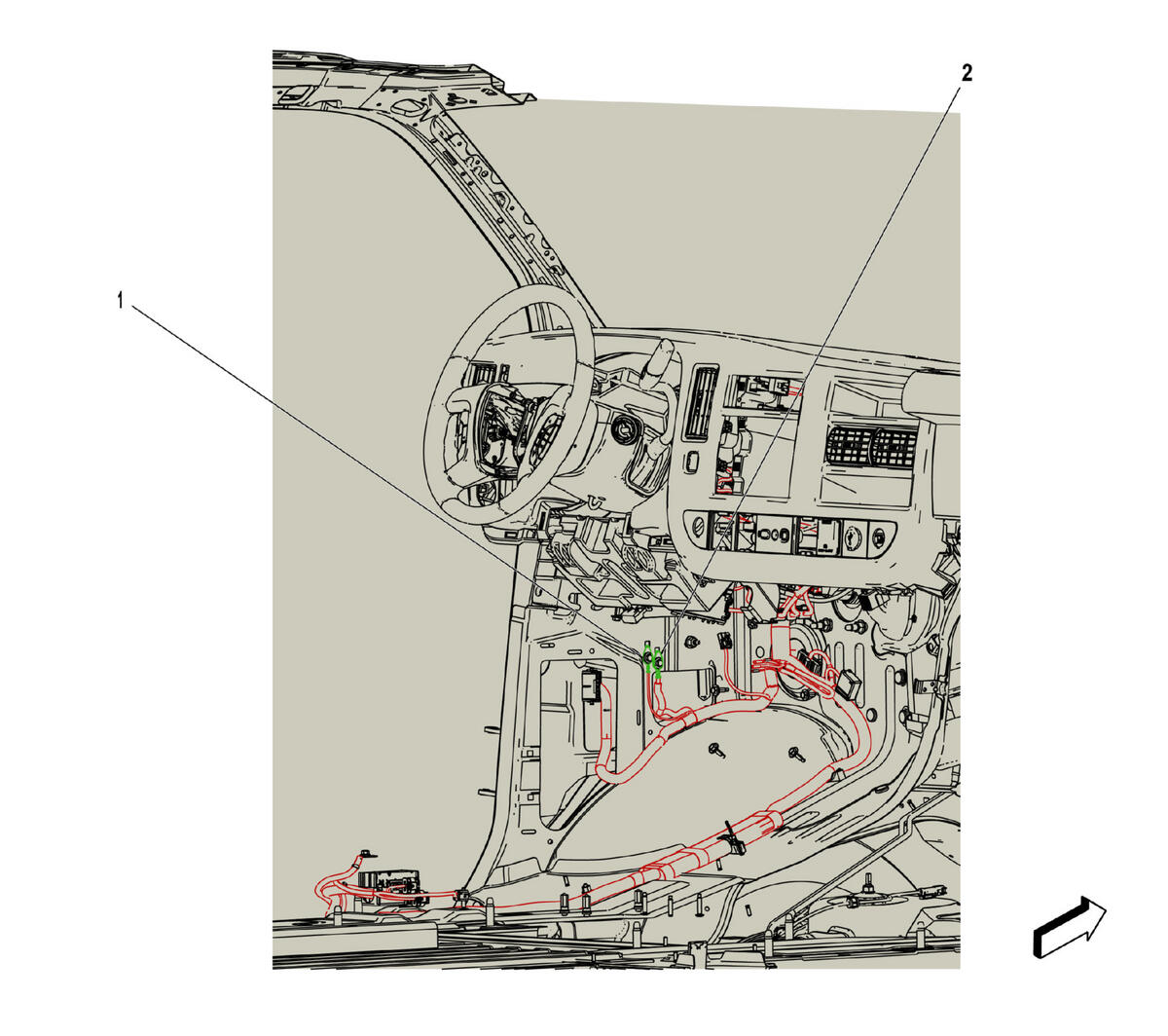

GM6043576Courtesy of GENERAL MOTORS COMPANY
Items
1. G301 Instrument Panel
2. G302 Instrument Panel
