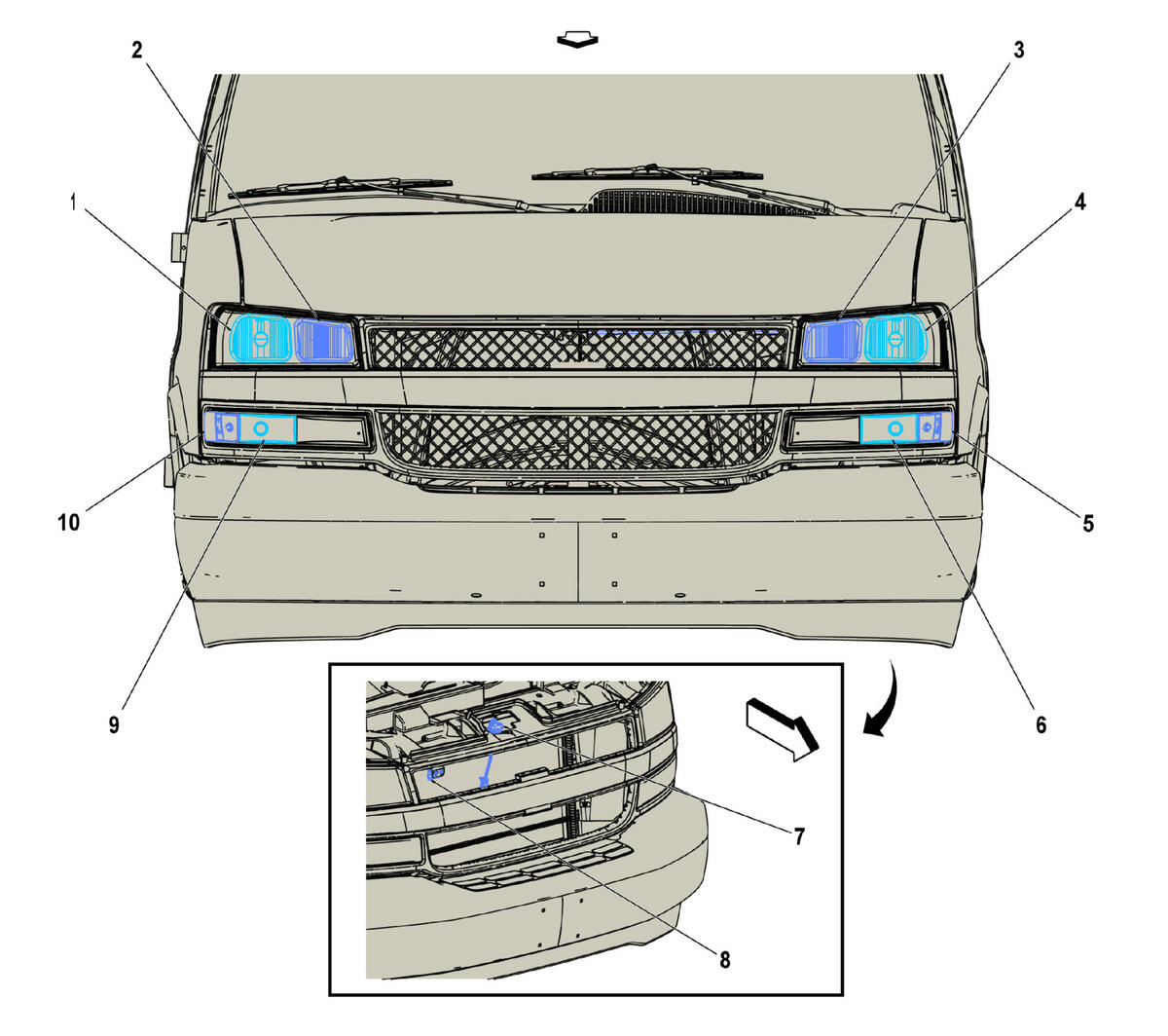

Front of Vehicle Components
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam |
| 2. E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam |
| 3. E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam |
| 4. E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam |
| 5. E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front |
| 6. E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left |
| 7. B55 Engine Hood Switch (BTV) B55 Engine Hood Switch |
| 8. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (LV1/L8T) , or B9 Ambient Air Temperature Sensor (UFA) |
| 9. E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right |
| 10. E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front |
