Brake Booster Fluid Alarm Switches (UJ1)

WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

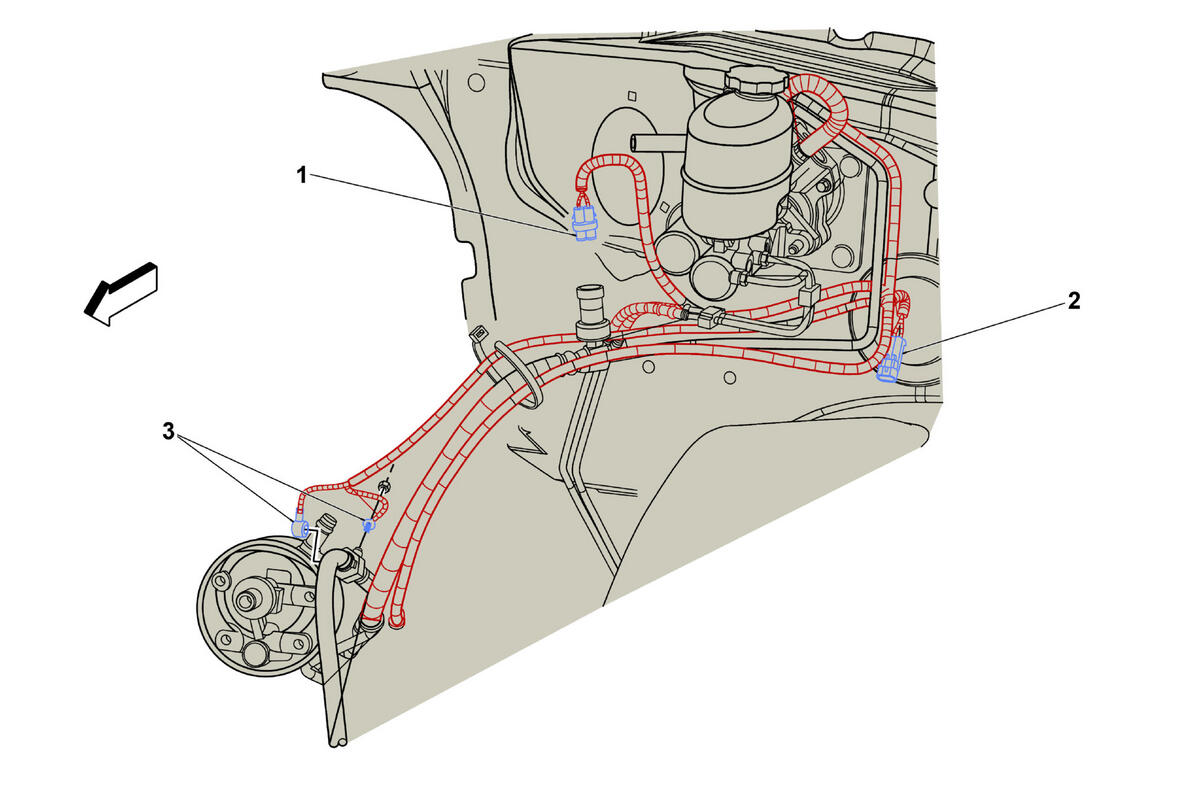

GM2831205Courtesy of GENERAL MOTORS COMPANY
Items
1. B19A Brake Booster Fluid Pressure Alarm Switch (UJ1) B19A Brake Booster Fluid Pressure Alarm Switch
2. X141 Instrument Panel Wiring Harness to Brake Fluid Level Indicator Wiring Harness (UJ1) X141 Instrument Panel Wiring Harness to Brake Fluid Level Indicator Wiring Harness
3. B133 Brake Booster Fluid Flow Alarm Switch (UJ1) B133 Brake Booster Fluid Flow Alarm Switch X1 , or B133 Brake Booster Fluid Flow Alarm Switch X2
