X155 Engine Wiring Harness to Engine Coolant Temperature Sensor Wiring Harness (L8T)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

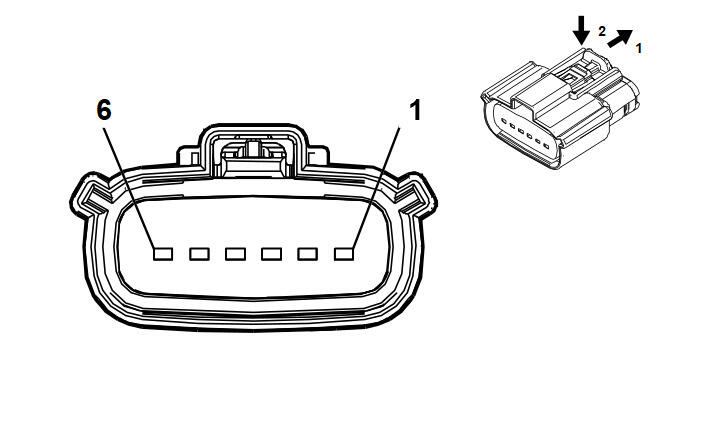

Connector Part Information
- Harness Type:Engine Wiring Harness
- OEM Connector: 35432115
- Service Connector: 86801953
- Description: 6-Way F 1.5 Series, Sealed (BK)
|
Connector Part Information
- Harness Type:Engine Coolant Temperature Sensor Wiring Harness
- OEM Connector: 33481-6601
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-3 (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU |
410 |
I |
- |
Engine Coolant Temperature Sensor Signal |
1 |
0.5 |
BU |
410 |
II |
- |
| 2 |
0.5 |
BK/YE |
548 |
I |
- |
Engine Control Sensors Low Reference 1 |
2 |
0.5 |
BK/YE |
548 |
II |
- |
| 3 |
0.5 |
YE/BN |
331 |
I |
- |
Oil Pressure Sensor Signal |
3 |
0.5 |
YE/BN |
331 |
II |
- |
| 4 |
0.5 |
BK/YE |
548 |
I |
- |
Engine Control Sensors Low Reference 1 |
4 |
0.5 |
BK/YE |
548 |
II |
- |
| 5 |
0.5 |
WH/RD |
480 |
I |
- |
Engine Control Vehicle Sensors 5 Volt Reference 1 |
5 |
0.5 |
WH/RD |
480 |
II |
- |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
