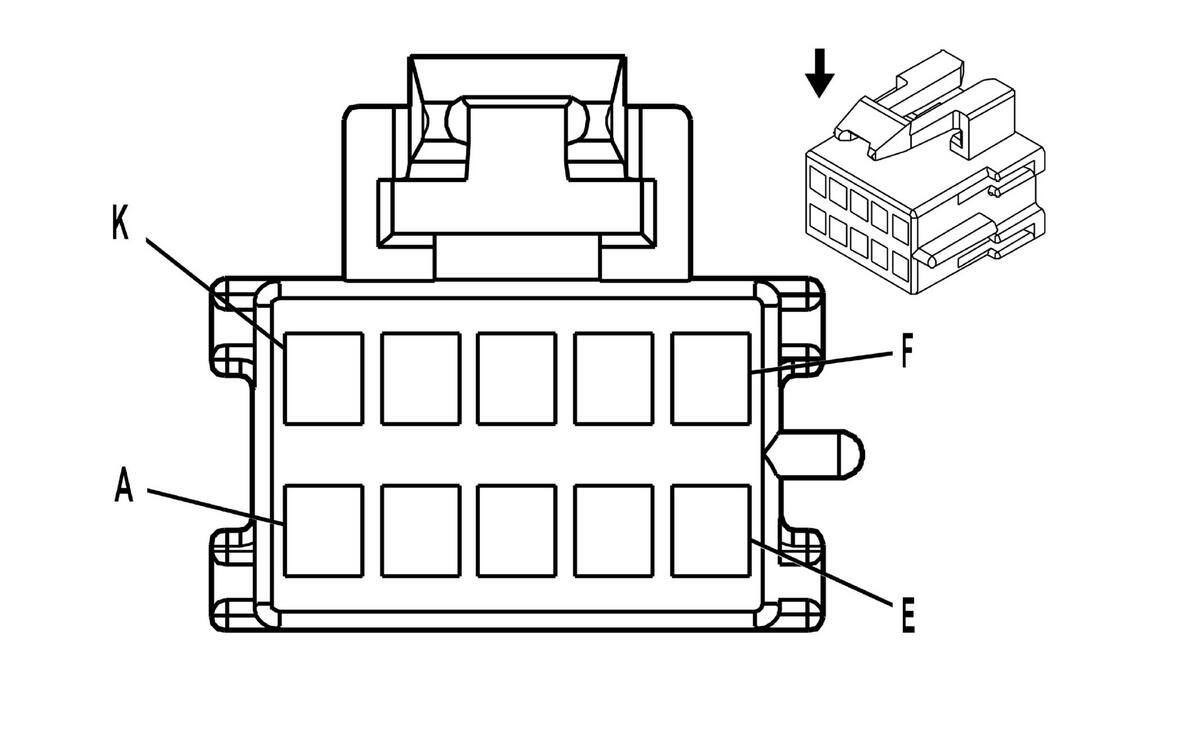

S34F HVAC Controls Switch Assembly - Auxiliary Front (Without Rear HVAC Controls)
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Roof Console Wiring Harness
- OEM Connector: 12064871
- Service Connector: 12101832
- Description: 10-Way F 150 Metri-Pack Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575464 |
J-35616-14 (GN) |
J-38125-12A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.35 |
BN/WH |
230 |
Instrument Panel Lamp Dimming Control |
I |
- |
| B |
0.35 |
BK |
1850 |
Ground |
I |
- |
| C |
0.5 |
BU |
1926 |
Auxiliary Blower Motor Low Speed Control 2 |
I |
- |
| D |
0.5 |
WH |
1924 |
Auxiliary Blower Motor High Speed Control |
I |
- |
| E |
0.5 |
OG |
1925 |
Auxiliary Blower Motor Medium Speed Control 2 |
I |
- |
| F |
0.35 |
BK |
1850 |
Ground |
I |
- |
| G |
0.35 |
BN |
341 |
Run Ignition 3 Voltage |
I |
- |
| H |
0.35 |
OG |
2775 |
Rear Air Temperature Door Actuator Control |
I |
- |
| J |
0.35 |
GY |
2599 |
Rear Mode Door Actuator Signal |
I |
- |
| K |
- |
- |
- |
Not Occupied |
- |
- |
