S13D Door Lock Switch - Driver
WARNING: This page is about a different car, the 2023 GMC Savana 3500, 2023 GMC Savana 2500, 2023 Chevrolet Express 3500, and 2023 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

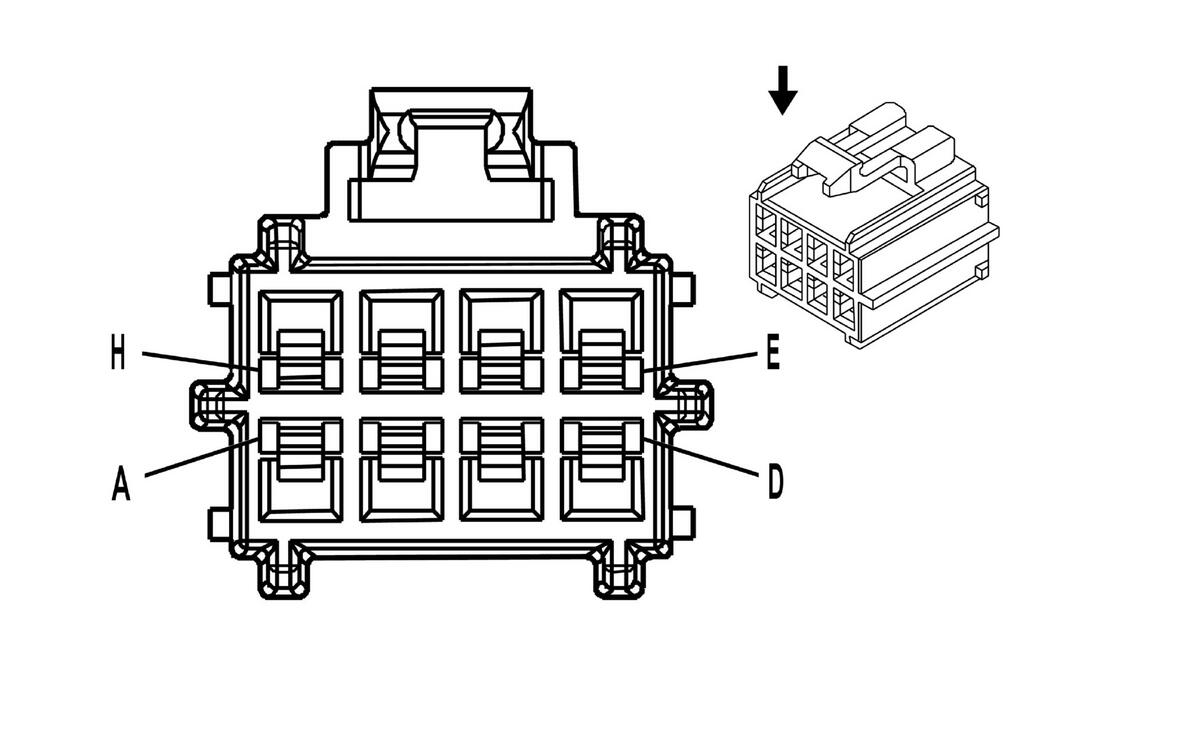

Connector Part Information
- Harness Type: Front Side Door Door Wiring Harness - Driver
- OEM Connector: 15418533
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 280 GT Series (L-GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.35 |
BK |
450 |
Ground |
I |
- |
| B |
0.35 |
BK |
450 |
Ground |
I |
- |
| C |
0.35 |
BN/WH |
230 |
Instrument Panel Lamp Dimming Control |
I |
- |
| D - E |
- |
- |
- |
Not Occupied |
- |
- |
| F |
0.35 |
OG/BK |
781 |
Driver Door Lock Switch Unlock Signal |
I |
- |
| G |
0.35 |
PK/BK |
780 |
Driver Door Lock Switch Lock Signal |
I |
- |
| H |
- |
- |
- |
Not Occupied |
- |
- |
