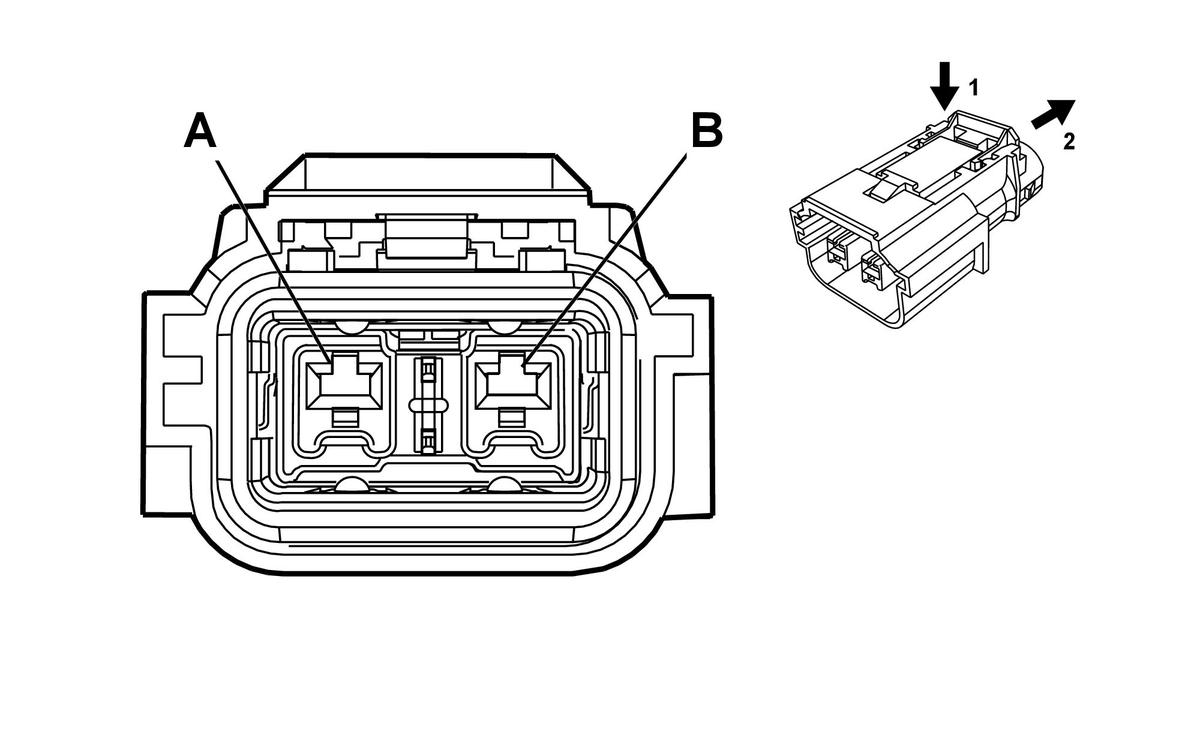

K1 14V Power Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: High Voltage
- OEM Connector: 13511583
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 280 Metri-Pack Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
OG/BK |
3833 |
Hybrid/EV Battery 2 [-] |
I |
- |
| B |
- |
OG |
3834 |
Hybrid/EV Battery 2 [+] |
I |
- |
