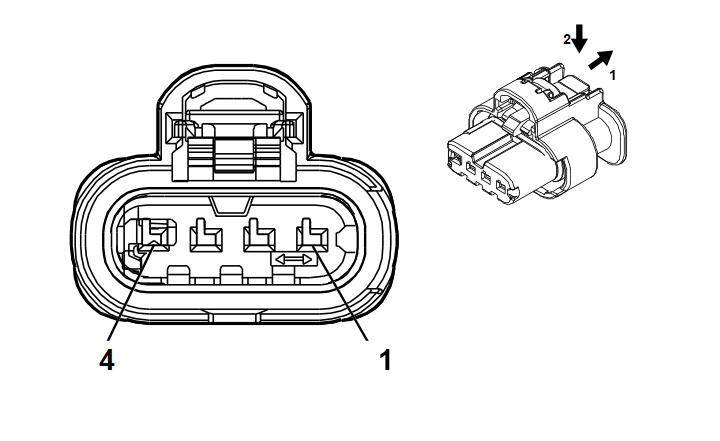

F101 Passenger Instrument Panel Air Bag

GM4280383

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Instrument Panel Wiring Harness
OEM Connector: 2296700-6
Service Connector: 19368563
Description: 4-Way F 1.2 MCON-CB Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-16 (L-GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5 0.5	OG/WH OG/WH	3024 3024	Passenger Instrument Panel Air Bag Stage 1 Low Control Passenger Instrument Panel Air Bag Stage 1 Low Control	I I	(AYF/AYG) AYF/AYG
2	0.5 0.5	YE/OG YE/OG	3025 3025	Passenger Instrument Panel Air Bag Stage 1 High Control Passenger Instrument Panel Air Bag Stage 1 High Control	I I	(AYF/AYG) AYF/AYG
3	0.5 0.5	OG/VT OG/VT	3026 3026	Passenger Instrument Panel Air Bag Stage 2 Low Control Passenger Instrument Panel Air Bag Stage 2 Low Control	I I	(AYF/AYG) AYF/AYG
4	0.5 0.5	GY/OG GY/OG	3027 3027	Passenger Instrument Panel Air Bag Stage 2 High Control Passenger Instrument Panel Air Bag Stage 2 High Control	I I	(AYF/AYG) AYF/AYG
