Front Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

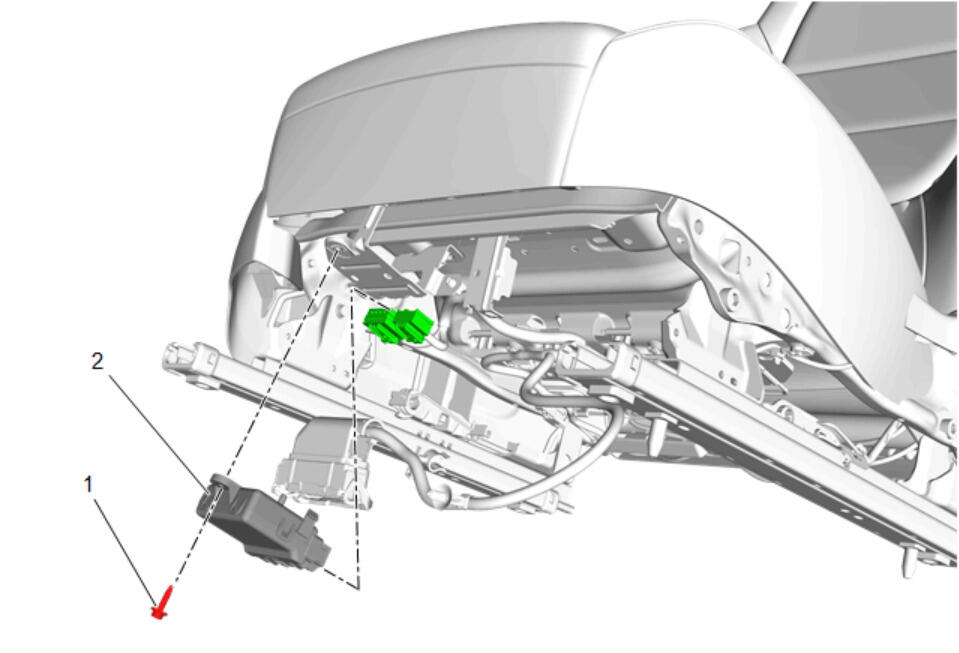

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Reposition the front passenger seat.
1	Front Seat Heater Vent Control Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Vent Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors. Return the front passenger seat to its original position.

Callout

Component Name

Preliminary Procedure
Reposition the front passenger seat.

Front Seat Heater Vent Control Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Vent Control Module

Procedure
