Front Bumper Fascia Support Brace Replacement

Courtesy of GENERAL MOTORS COMPANY

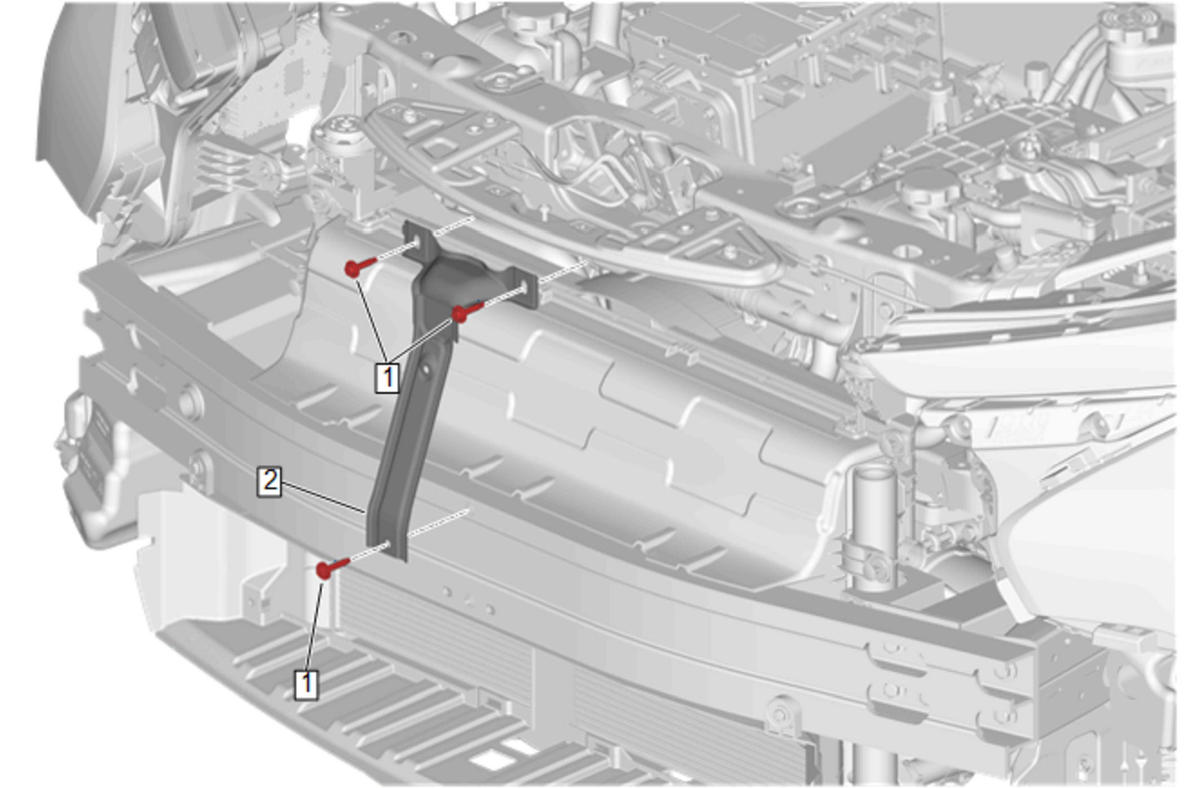

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Bumper Fascia Replacement
1	Front Bumper Fascia Support Brace Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Bumper Fascia Support Brace
