Installation Procedure

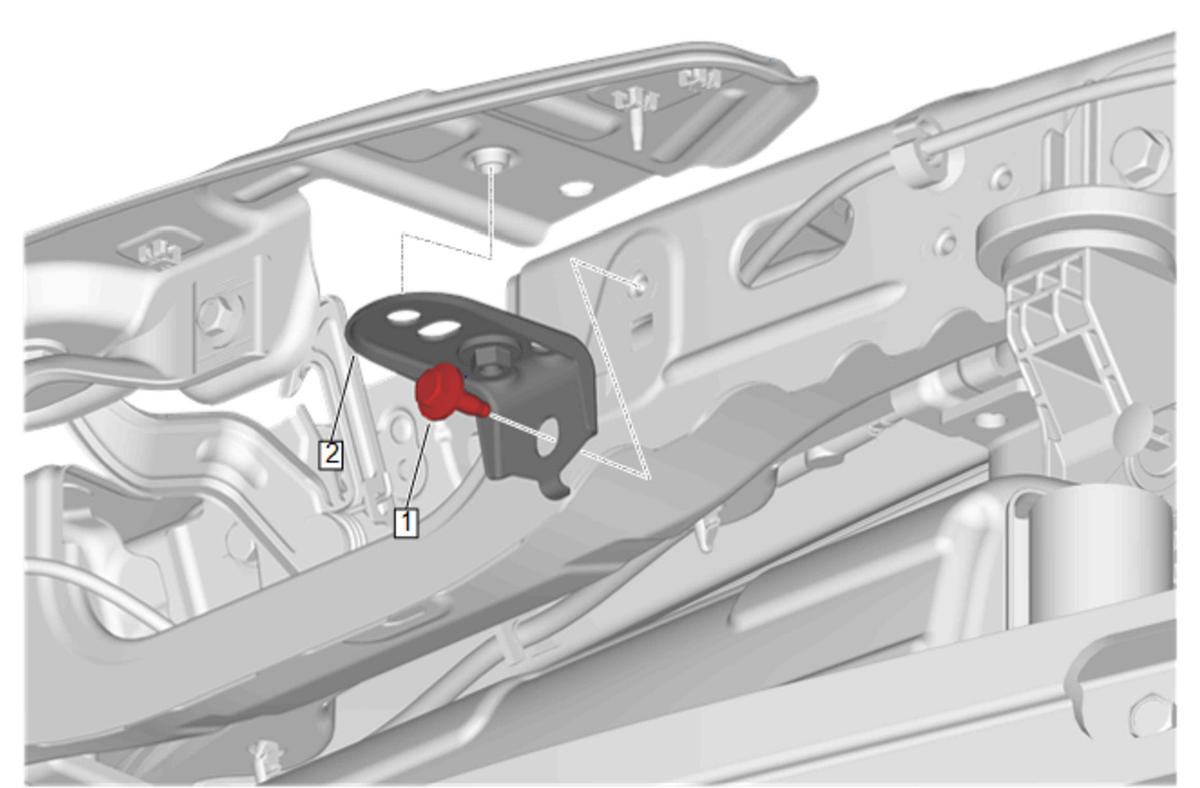

  1. GM5721525Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Cross Brace Bracket (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front End Upper Tie Bar Bolt (1) - Install and tighten 9 N.m (80 lb in)

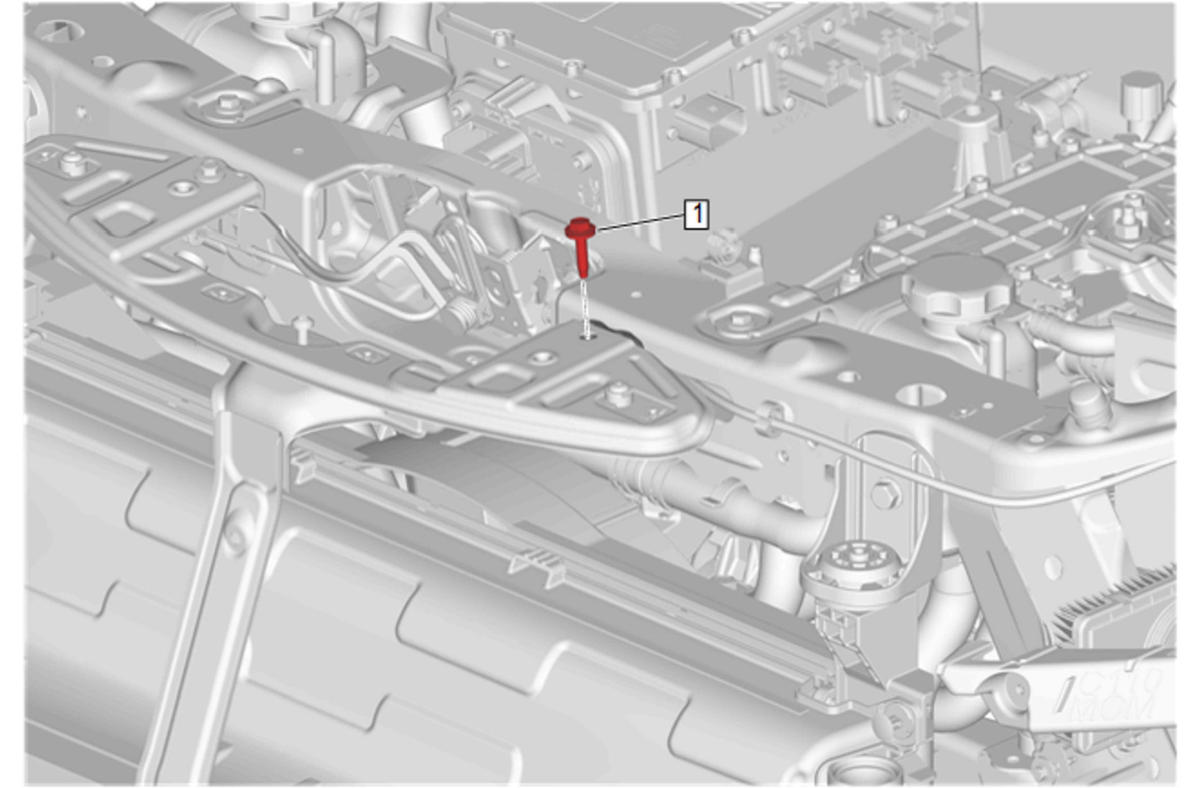

  3. GM5721524Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia Center Support Bolt (1) - Install and tighten - Front Bumper Fascia Center Support Replacement

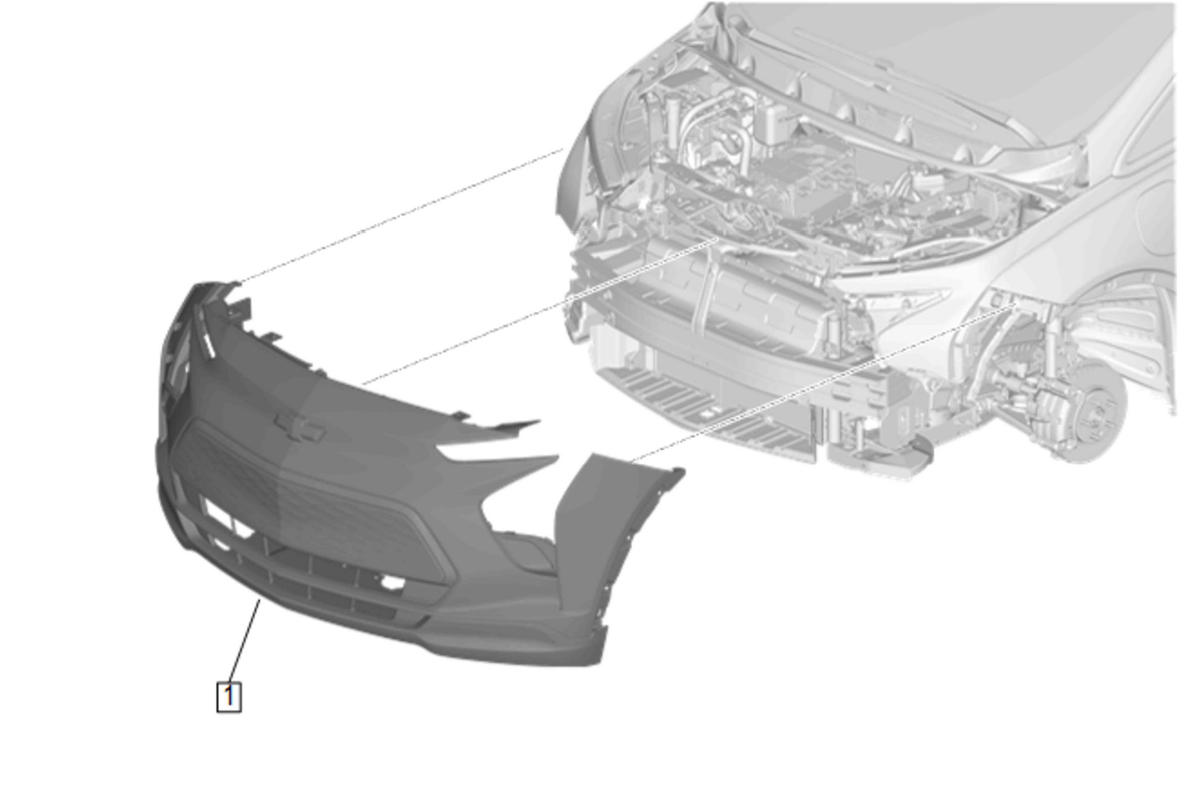

  4. GM5721515Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement
