Windshield Multifunction Sensor Mount Bracket Cover Replacement (without Front View Camera)

Courtesy of GENERAL MOTORS COMPANY

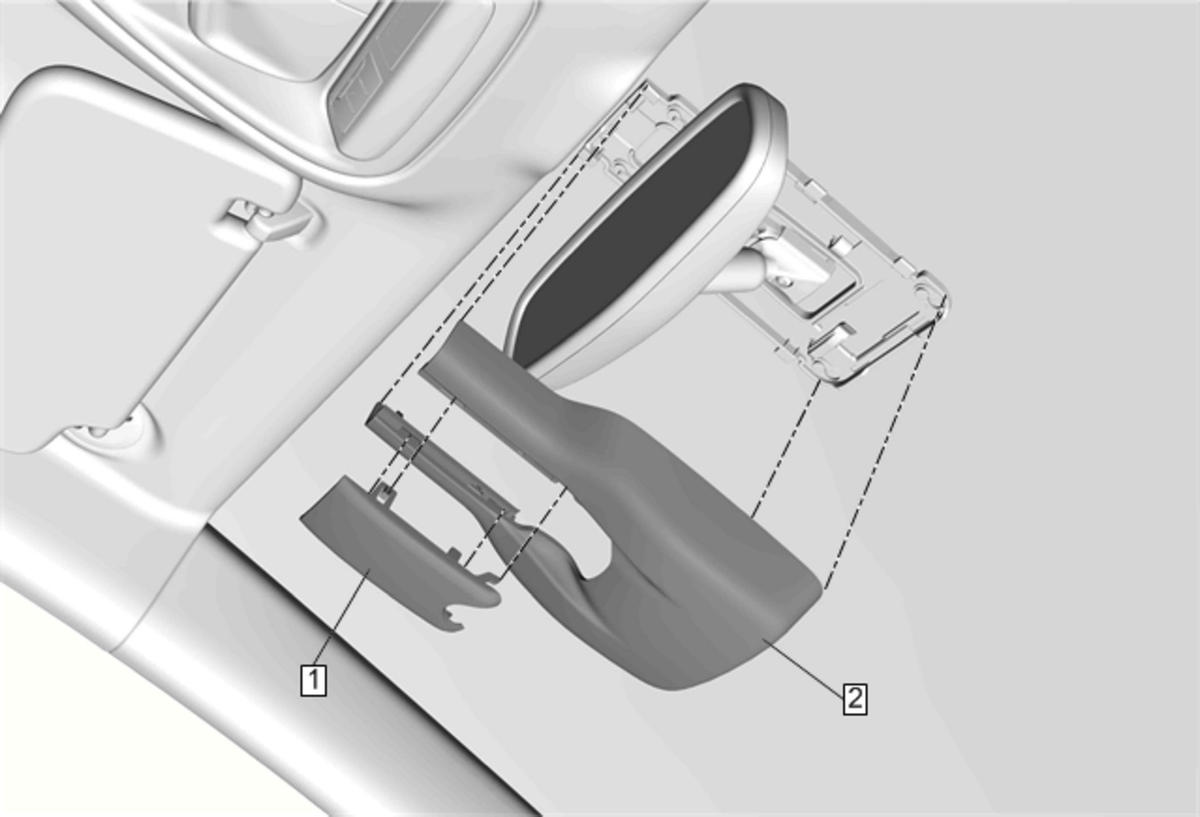

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.
2	Windshield Multifunction Sensor Mount Bracket Cover Procedure Using a plastic trim tool, release the cover from the windshield bracket. Windshield Multifunction Sensor Mount Bracket Cover Insert@Windshield Multifunction Sensor Mount Bracket Cover - Remove

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Windshield Multifunction Sensor Mount Bracket Cover

Procedure

Using a plastic trim tool, release the cover from the windshield bracket.
Windshield Multifunction Sensor Mount Bracket Cover Insert@Windshield Multifunction Sensor Mount Bracket Cover - Remove
