Front Headlamp Replacement

Courtesy of GENERAL MOTORS COMPANY

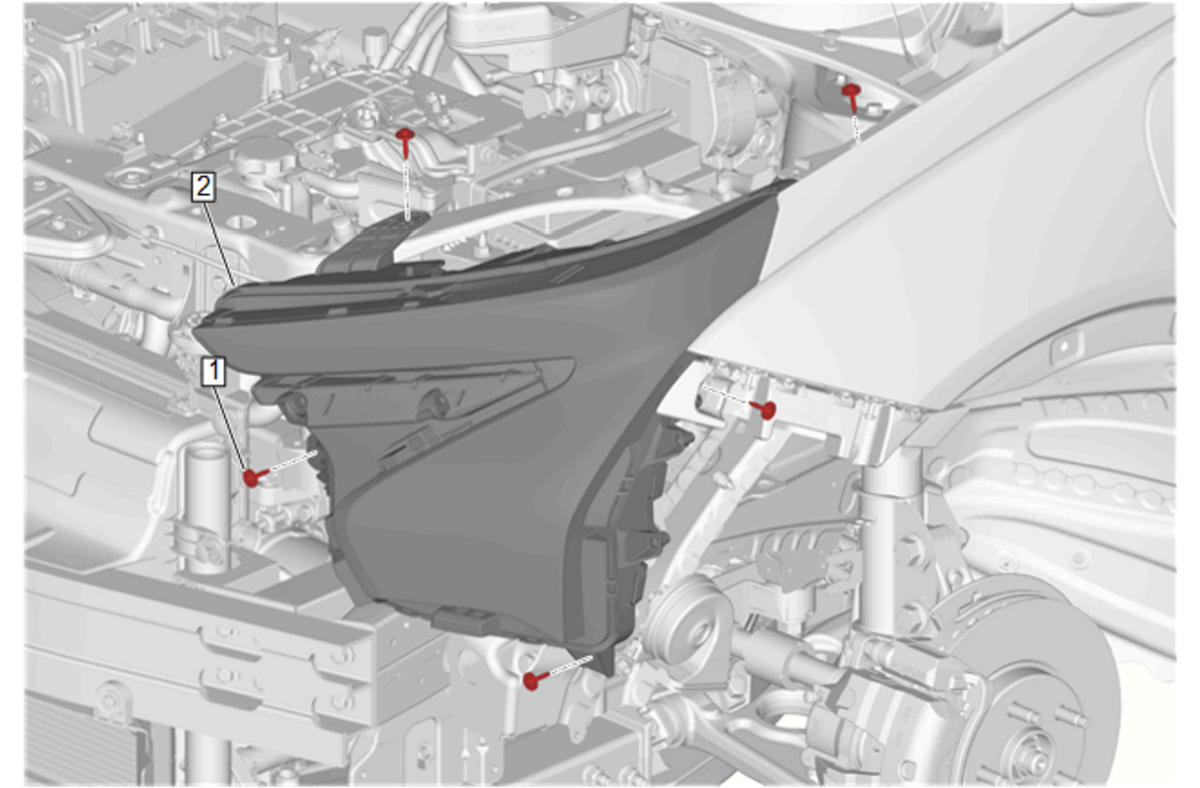

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Front Fender Upper Rear Molding Bolt - Remove - Front Fender Upper Rear Molding Replacement
1	Headlamp Bolt [5x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Headlamp Procedure Disconnect the electrical connector. Perform the headlamp aiming procedure. Front Headlamp Aiming (North America)

Callout

Component Name

Preliminary Procedures

Headlamp Bolt [5x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Headlamp

Procedure
