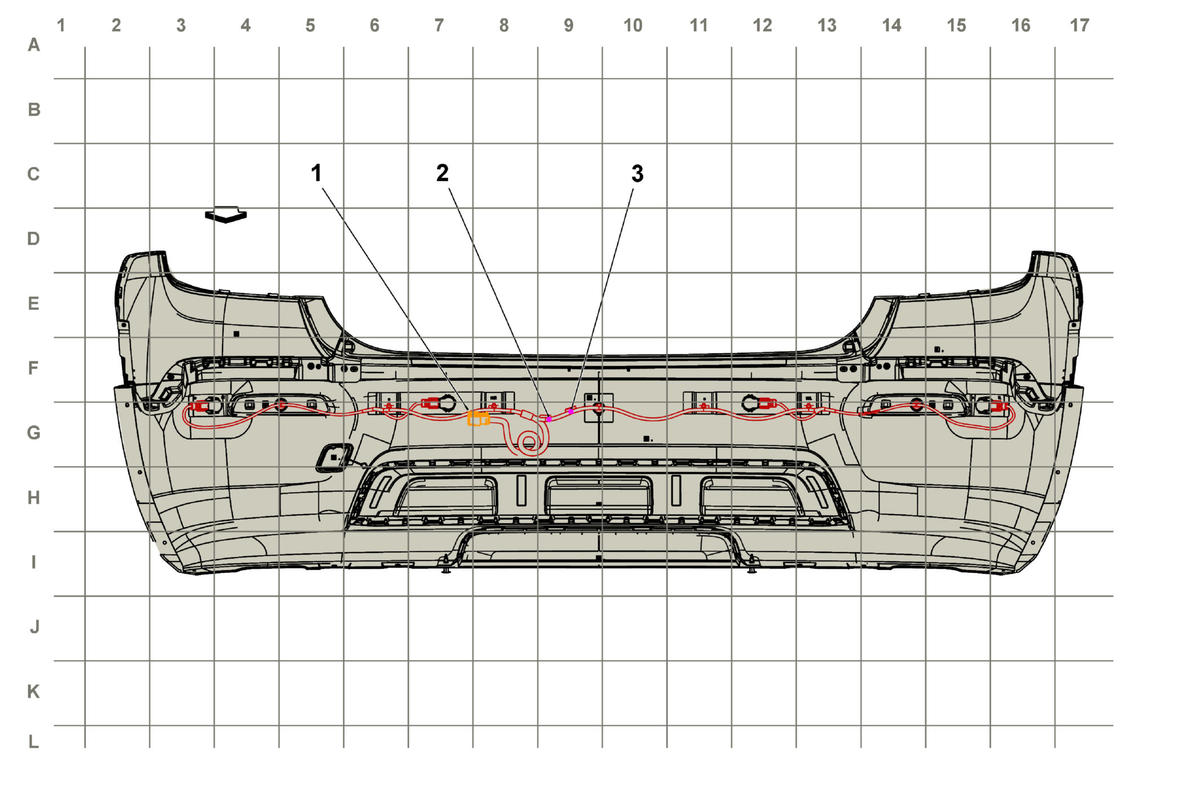

Rear Fascia Harness Routing (Chevrolet)
Rear Fascia Harness Routing (Chevrolet)
| Harness Name | Callout |
|---|---|
| X400 Rear Object Alarm Sensor Wiring Harness to Body Wiring Harness X400 Rear Fascia Wiring Harness to Body Wiring Harness | 1 |
| J401 Rear Fascia Harness | 2 |
| J400 Rear Fascia Harness | 3 |
