Left Rear Door Harness Routing (Chevrolet)

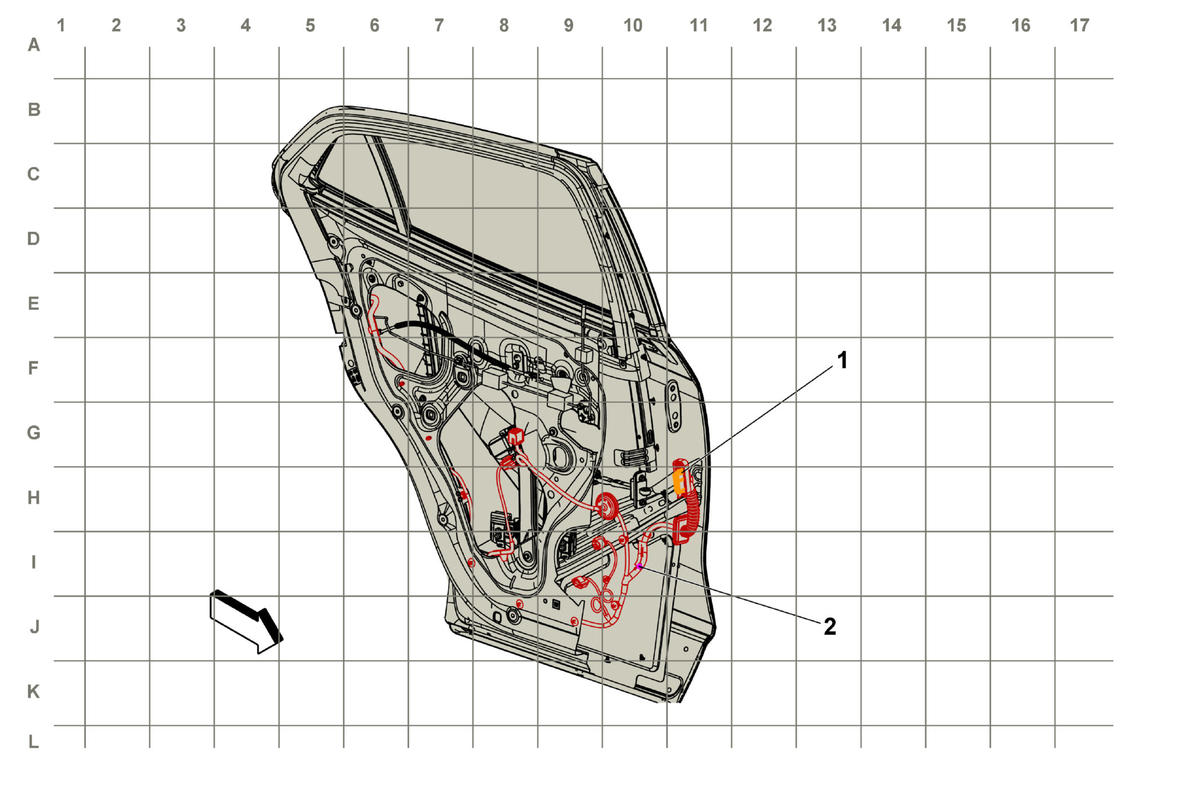

GM3656838Courtesy of GENERAL MOTORS COMPANY
Left Rear Door Harness Routing (Chevrolet)

Harness Name Callout
X700 Left Rear Door to Body Wiring Harness X700 Left Rear Door Wiring Harness to Body Wiring Harness 1
J702 Left Rear Door Harness 2
