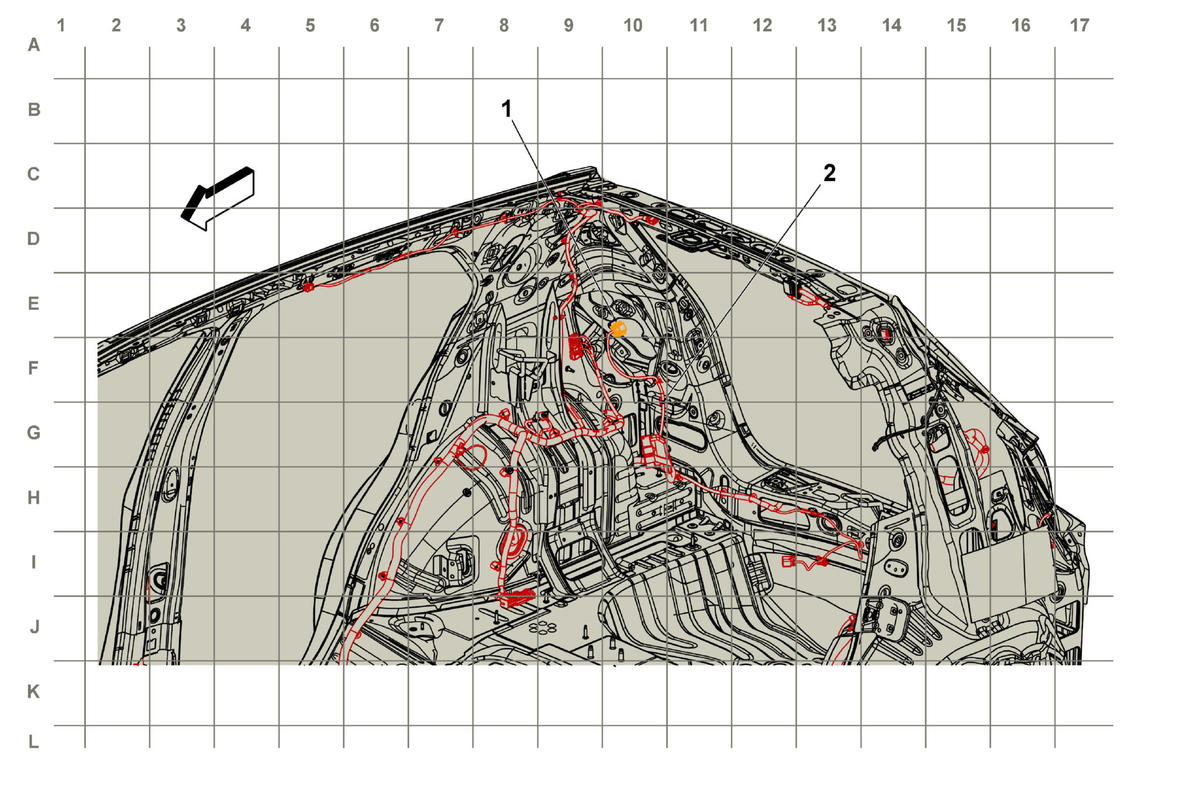

Body Harness Routing - Right Rear of Passenger Compartment (Chevrolet)
Body Harness Routing - Right Rear of Passenger Compartment (Chevrolet)
| Harness Name | Callout |
|---|---|
| X420 Body Wiring Harness to Tail Lamp - Right X420 Rear Body Structure Stop Lamp to Body Wiring Harness (UGE) | 1 |
| J387 Body Harness | 2 |
