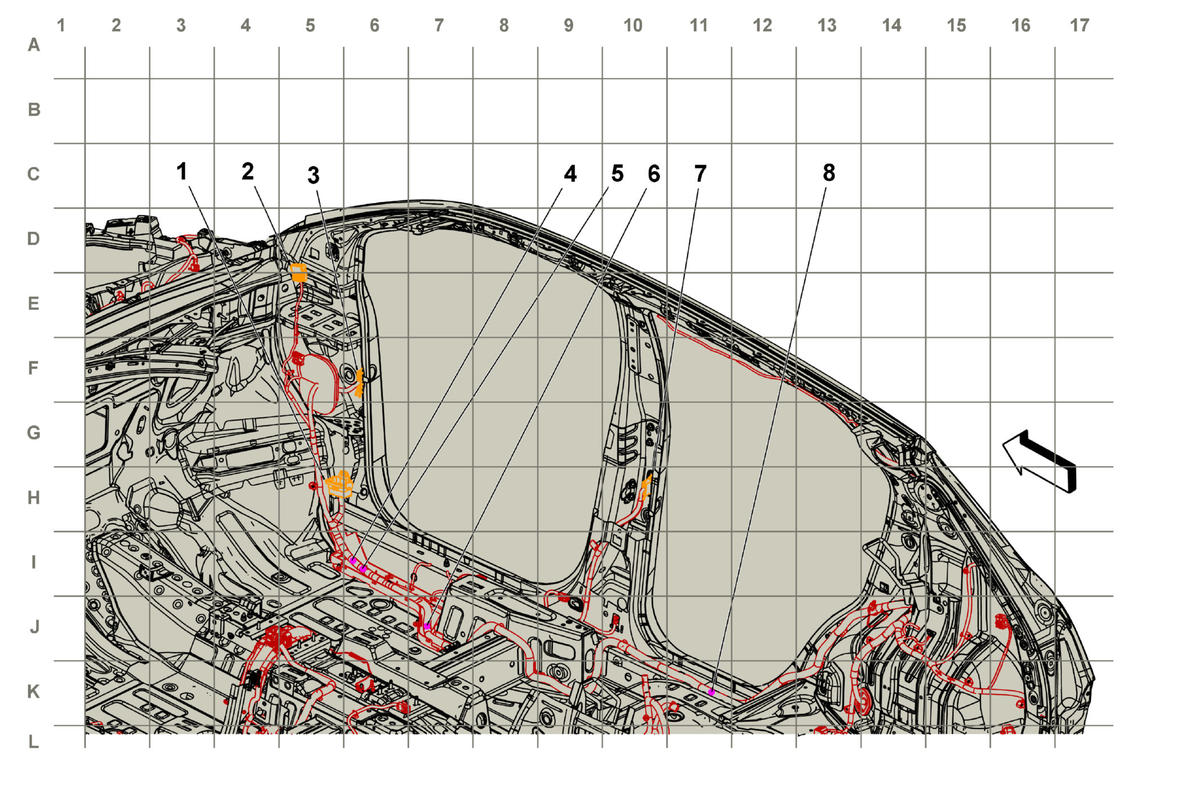

Body Harness Routing - Right Front of Passenger Compartment (Chevrolet)
Body Harness Routing - Right Front of Passenger Compartment (Chevrolet)
| Harness Name | Callout |
|---|---|
| X202 Instrument Panel Wiring Harness to Body Wiring Harness X202 Instrument Panel Wiring Harness to Body Wiring Harness | 1 |
| X209 Roof Wiring Harness to Body Wiring Harness X209 Headliner Wiring Harness to Body Wiring Harness | 2 |
| X600 Passenger Door to Body Wiring Harness X600 Passenger Door Wiring Harness to Body Wiring Harness | 3 |
| J232 Body Harness | 4 |
| J231 Body Harness | 5 |
| J347 Body Harness | 6 |
| X800 Right Rear Door to Body Wiring Harness X800 Right Rear Door Wiring Harness to Body Wiring Harness | 7 |
| J314 Body Harness | 8 |
